• 60 Nm Strong actuator
  • Comes ready for use with ESBE Butterfly valves
  • 2-Point / 3-Point and Proportional control signal options

The ESBE series ARC600 is an actuator suitable for both ESBE butterfly valves as well as damper applications. Thanks to the high torque ARC600 is recommended to work with the largest valves DN80-125 and with dampers sizes up to 10m². The actuator comes with adapter kit ready to be mounted on the ESBE butterfly valves.

Product range

ARC66x Reference Voltage [V AC/DC] Running time 90° [s] Control signal Torque [Nm]
12202100 ARC661 230 150 2-point SPST/3-point SPDT 60
12221100 ARC669 24 150 Proportional 60
Installation support

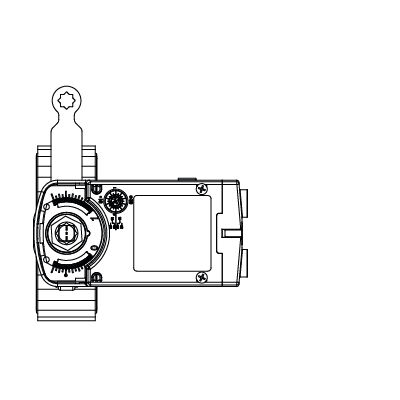

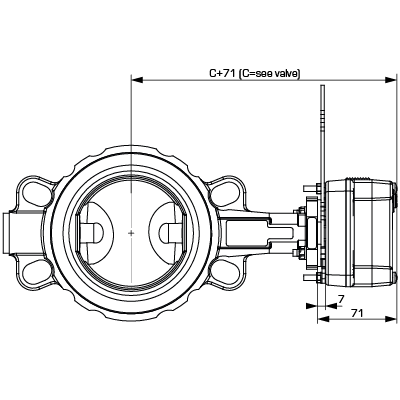

Installation dimensions for Actuator ARC600, with valve assembly kit
Technical data

Technical data

Ambient humidity: 5...95% r.H. non-condensating
Power supply: 24 V AC (50/60 Hz), 24 V DC;
230 V AC (50/60 Hz), 230 V DC
Nominal voltage range: 19...29 V AC/DC;
85...265 V AC/DC
Power consumption: Running - 24V: 13,5 W;
Running - 230V: 13,0 W;
Standby - 24V: 1,5 W;
Standby - 230V: 2,0 W
Wiring sizing: 24V: 16,5 VA;
230V: 20,0 VA
Enclosure rating: IP54
Protection class: 24V: III;
230V: II
Torque: 60 Nm
Running time: 150s/90°
Cable length: 1 m
Weight: 1,7 kg
Ambient temperature, max.: +50 °C
Ambient temperature, min.: -30 °C
LVD 2014/35/EU
EMC 2014/30/EU
RoHS 2011/65/EU


Please see Installation instruction
Accessories and Spare Parts

Adaptor Kits

Art No. Reference Designation Note Instruction manual
13905200 13905200 VBF802 ESBE VBF802 Adaptor kit ESBE valves series VBF100 - actuator series ARCx00, ARDx00 Series ARCx00, ARDx00. Order separately. download
