Actuator

ARD100, ARD200

  • Spring return actuator for failsafe operation
  • Perfect match between the actuator and ESBE valves 3F/4F
  • Comes with adapter for clamp coupling for spindle assembly
  • Different control signals available

The ESBE series ARD100 and ARD200 are a range of actuators suitable for both rotary mixing valves as well as damper applications.

The ARD100 is suitable to work with ESBE valves up to DN80, and with damper sizes up to 2m2. Thanks to the high torque ARD200 is suitable to work with the largest ESBE valve DN100-150, and with dampers sizes up to 4m2. The actuator comes with 2 sets of adapters; one set for assembly on ESBE valves 3F/4F, and one set with clamp coupling for damper spindle assembly.

Product range

ARD1xx

Damper assembly kit
Art.no. Reference Voltage [V AC/DC] Running time, opening 90° [s] Running time, closing 90° [s] Control signal Torque [Nm] A [mm] B [mm] C [mm] D [mm]
12240100 ARD155 230 75 20 2-point 10 42 48 60 68
12241100 ARD157 24 75 20 2-point 10 42 48 60 68
12260100 ARD169 24 150 20 Proportional 10 42 48 60 68

ARD2xx

Damper assembly kit
Art.no. Reference Voltage [V AC/DC] Running time, opening 90° [s] Running time, closing 90° [s] Control signal Torque [Nm] A [mm] B [mm] C [mm] D [mm]
12240200 ARD255 230 75 20 2-point 20 47 53 70 73
12241200 ARD257 24 75 20 2-point 20 47 53 70 73
12260200 ARD269 24 150 20 Proportional 20 47 53 70 73
Installation support

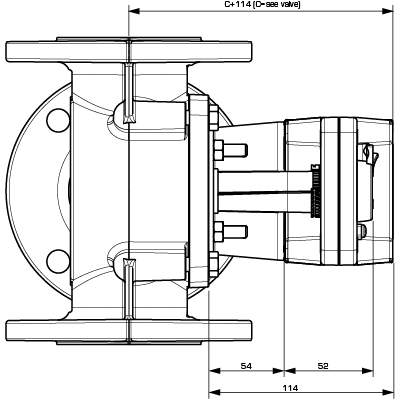

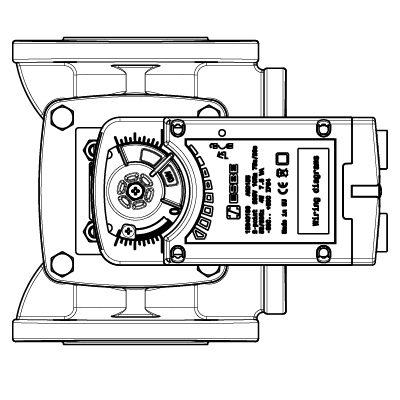

Installation dimensions for Actuator Series ARDx00, with valve assembly kit
ARD100
ARD200

Mounting positions

Mounting positions
Technical data

Technical data

Ambient humidity: 5...95% r.H. non-condensating
Power supply: 24 V AC (50/60 Hz), 24 V DC;
230 V AC (50/60 Hz), 230 V DC
Nominal voltage range: 19...29 V AC/DC;
85...265 V AC/DC
Power consumption: Running - 24V: ARD100: 5 W/ARD200: 10,5 W;
Running - 230V: ARD100: 5,5 W/ARD200: 10,5 W;
Standby - 24V: ARD100: 2 W/ARD200: 2,5 W;
Standby - 230V: ARD100: 1,5 W/ARD200: 2 W
Wiring sizing: 24V: ARD100: 8,0 VA / ARD200: 14 VA;
230V: ARD100: 11,5 VA / ARD200: 22,5 VA
Enclosure rating: IP54
Protection class: 24V: III;
230V: II
Torque: ARD100: 10 Nm;
ARD200: 20 Nm
Running time: Opening - 2-point: 75s/90°;
Opening - proportional: 150s/90°;
Closing: 20s/90°
Cable length: 1 m
Weight: ARD100: 1,8 kg;
ARD200: 2,4 kg
Ambient temperature, max.: +50 °C
Ambient temperature, min.: -30 °C
LVD 2014/35/EU
EMC 2014/30/EU
RoHS 2011/65/EU

Wiring

Please see Installation instruction
Accessories and Spare Parts

Adaptor Kits

Art No. Reference Designation Note Instruction manual
13905200 13905200 VBF802 ESBE VBF802 Adaptor kit ESBE valves series VBF100 - actuator series ARCx00, ARDx00 Series ARCx00, ARDx00. Order separately. download
Download area

Download area

Type Preview Download
Data sheet ARD100 download
Data sheet ARD200 download
Installation instruction ARDx00, Electric settings download
Installation instruction ARDx00, Valve assembly download
Installation instruction ARDx00, Damper assembly download
Certificate Declaration of Conformity ARD100, ARD200 download
Certificate Building Product Declaration BPD3 download
Image ARD100/ARD200, high res download
2D Image ARD100, ARD200 download
