Circulation unit, Mixing function
GRF100
- Perfect control thanks to progressive valve characteristic
- 180mm pump ready – be free to use favorite pump manufacturer
- Control the system manually, via actuator or even controller
- High class, adjustable insulation shell
The ESBE series GRF100 is a circulation mixing unit which is intended for heating circulations where the flow and temperature control are required. Equipped with two shut-off valves with thermometers, check valve and high class isolation shell. The GRF100 is delivered with the 3-way rotary progressive mixing valve, which ensures low oversizing risk and best regulation performances independent from flow rate.
The ESBE Circulation Unit GRF100 is ready to work with 180mm pumps. The smart adjustable insulation shell makes it sure that any kind of pump will be isolated in a right way. Choose the best system control and select one of the actuators or controllers from ESBE program.
Product range
GRF1x1
| Art.no. | Reference | DN | Connection I | Connection J | Weight [kg] | Note |
| 61240100 | GRF111 | 25 | G 1" | G 1½" | 3,4 | |
| 61241100 | GRF121 | 25 | G 1" | G 1½" | 3,8 | 230V, 3 point control signal ARA661 |
Technical data
Technical data
| Pressure class: | PN 10 |
| Working pressure: | 1,0 MPa |
| Insulation: | EPP λ 0,036 W/mK |
| Media, Heating water: | in accordance with VDI2035 |
| Media, Water/Glycol mixtures: | max. 50 % (above 20% admixture, the pump data must be checked) |
| Media temperature, max.*: | +110 °C |
| Media temperature, min.*: | 0 °C |
| Ambient temperature, GRF111*: | min. 0°C, max. +60°C |
| Ambient temperature, GRF121*: | min. 0°C, max. +55°C |
| *Media temperature/Ambient temperature, max.°C/min.°C.: | consider data for choosen pump |
| Connections, Internal thread (G): | ISO 228/1 |
| Connections, External thread (G): | ISO 228/1 |
| Material, in contact with water |
Components: Brass, steel Sealing materials: PTFE, Aramid fibre, EPDM |
Integrated valve
| ESBE VRG432, DN20-8 | |
| max. Differential pressure drop: | 100 kPa (1 bar) |
| Close off pressure: | 200 kPa (2 bar) |
| Leakrate in % of flow: | <0,05%* |
| *: | Differential pressure 100 kPa (1 bar) |
Integrated Actuator
| ESBE ARA661 | |
| Control signal: | 3-point SPDT |
| Power supply: | 230 ± 10% V AC, 50Hz |
| Power consumption: | 5 VA |
| Running time 90°: | 120 s |
| Enclosure rating: | IP41 |
| Protection class: | II |
Conformity
SI 2016 No. 1105
EMC 2014/30/EU
RoHS3 2015/863/EU
ErP 2009/125/EU
SI 2016 No. 1091
SI 2012 No. 3032
SI 2010 No. 2617
Characteristics
Accessories and spare parts
Options
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
66001100 | GMA411 | ESBE GMA411 Hydraulic separation for 1 circulation unit. | DN25/32 |  |
|
 |
66001200 | GMA421 | ESBE GMA421 Manifold for 2 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001300 | GMA431 | ESBE GMA431 Manifold for 3 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001400 | GMA441 | ESBE GMA441 Manifold for 4 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001500 | GMA451 | ESBE GMA451 Manifold for 5 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001600 | GMA521 | ESBE GMA521 Manifold for 2 circulation units, with integrated hydraulic separator function. | DN25/32 | |
|
 |
66001700 | GMA531 | ESBE GMA531 Manifold for 3 circulation units, with integrated hydraulic separator function. | DN25/32 | |
|
Spare parts
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
67000700 | GSP912 | ESBE GSP912 Adaptor kit VRG&ARA | Adaptor kit for ESBE valves series VRG and Actuators series ARA. DN20-DN32 | |
|
 |
67006100 | GSP961 | ESBE GSP961 Actuator ARA661 120s 230V 3p QF | |
|
|
 |
67000600 | GSP903 | ESBE GSP903 Thermometer upgrade set, 2 pcs/package | |
|
|
 |
67003400 | GSP911 | ESBE GSP911 Ball valves incl thermometer DN 25, 2 pcs/package | DN25 | |
|
 |
67002000 | GSP910 | ESBE GSP910 Insulation circulation unit FLEXI | |
|
Download area
Download area
| Type | Preview | Download |
| Data sheet | GRF100 |
|
| Installation instruction | GRF100 (de, en, fr, it, pl, ru, sv) |
|
| Installation instruction | GRF100 (si) |
|
| Certificate | Declaration of Conformity, GRF111 |
|
| Certificate | Declaration of Conformity, GRF121 |
|
| Certificate | Declaration of Conformity UKCA, GRF111 |
|
| Certificate | Declaration of Conformity UKCA, GRF121 |
|
| Certificate | Building Product Declaration BPD3, GRF100 |
|
| Certificate | EAC certificate (RU), GRF100 |
|
| Certificate | UKRSEPRO certificate (UA), GRF100 |
|
| Image | GRF111, high res |
|
| Image | GRF121, high res |
|

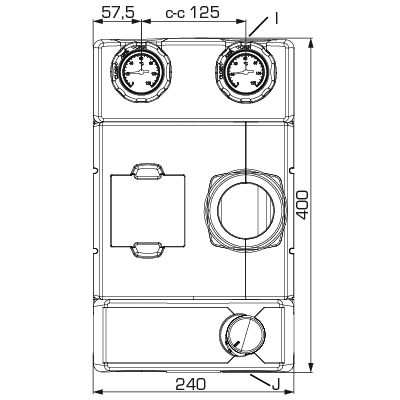

| 2D Image | GRF111 |
|

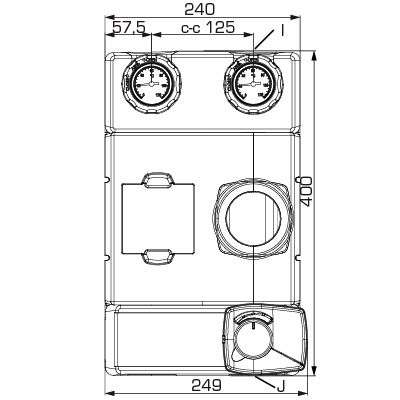

| 2D Image | GRF121 |
|
| 3D drawing (stp file) | GRF111, DN25 |
|
| 3D drawing (stp file) | GRF121, DN25 |
|
