Separation unit
SKC100
- Preassembled and pressure tested unit
- Easy and quick installation
- Potable water preparation
- Flexible design with the possibility of upgrade
- Dedicated unit controller
- Ensures the system compliance with INAIL
Series SKC100 is dedicated to separate two heating devices, as well as potable water preparation.
The SKC100 comes with a 30kW plate heat exchanger, a Wilo PARA 8m pump, check valve, diverting valve and 20kW plate heat exchanger for potable water preparation. The unit can deliver 12 l/min of potable hot water with a temperature of 45°C.
The unit can be equipped with a controller CSK211 (available as accessory) to switch on the pump if the heating source for portable hot water preparation has reached working temperature, as well as turning off the gas or oil boiler, in case of solid fuel boiler usage. In case the solid fuel heating source isn’t equipped with a pump, the SKC111 is prepared for a smooth installation of pump (available as accessory).
For anti-scalding protection, ESBE is recommending one of the thermostatic mixing valves available in ESBE product portfolio.

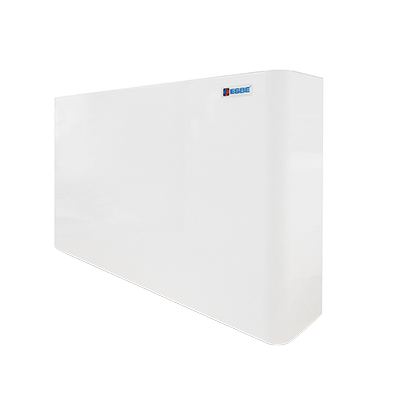

SKC111
![SKC111.png](/storage/814B97856F397294504C487604BA8F610FB22F28E23FCCC5CCD987511C291804/36ab2eb0683a49e2a96a00554bf6cb63/160-160-0-png.Png/media/3c9492701c664bb793abb2cd1fc37f5b/SKC111.png)
![SKC111_B_Front.png](/storage/1C694DA9B95E067A014D5AA291F5D33ABD0889793E63D9BF349484AE44877B5D/2be781b63e9a4116a7444c7d18dce768/160-160-0-png.Png/media/b2d730e9ab90458f9fcd01f262b3afda/SKC111_B_Front.png)
![SKC111_B_Side.png](/storage/7E107C2B223736C7EF9246FE2C0CAB854334657C6D41667BA0DEAB5B1FFACC41/729d55cb6d0042139205887f2c8577f0/160-160-0-png.Png/media/0fb8e0b087794fddadfce3db5813c664/SKC111_B_Side.png)
Art.no. | Reference | Connections A, B, D, H | Connections E, F, G | PHW [l/min] | Weight [kg] |
62002100 | SKC111 | G ¾" | G ½" | 12 | 14,7 |
Installation examples
![Installation examples](/storage/71AA41B28A61188F1D6CDAF2B4BBFE4D3877EABED43F2C1CCB72B509D3E73627/8519b7d5fb2e471c971486618a370bb0/png/media/a80cbf65d0b84101a79c33b637912464/Oil%20Gas%2010_Solid%20Fuel%209_DHW%2014-01.png)
Documents
Name | Download |
Installation instruction SKC100 |
|
Technical data
Pressure class: | PN 6 |
Connections: | External thread (G), ISO 228/1 |
Max. Working pressure, primary: | 0,6 MPa (6 bar) |
Max. Working pressure, secondary: | 1,0 MPa (10 bar) |
Plate heat exchanger, heating: | 30 kW |
Plate heat exchanger, PHW: | 20 kW |
Potable hot water capacity: | 12 l/min |
Potable hot water temperature: | +45 ºC (at 12 l/min and cold water 15ºC) |
Media temperature, max.: | +90 ºC |
Media temperature, min.: | 0 ºC |
Ambient temperature, max.: | +50 ºC |
Ambient temperature, min.: | 0 ºC |
Media, primary side: | Heating water in accordance with VDI2035 |
Media, secondary side: | Potable water |
Integrated pump
Wilo PARA 15-130/8-75/SC | |
Pressure class: | PN10 |
Power supply: | 230 ± 10% V AC, 50/60 Hz |
Power consumption: | 10 — 75 W |
Enclosure rating: | IP X4D |
Insulation class: | F |
EEI (Energy Efficiency Index), circulation pump: | ≤0,21 - part 3 |
Integrated valve
3STMA20 + RSF-4V | |
Pressure class: | PN 16 |
Differential pressure, max.: | ΔP 5 bar |
Power supply: | 230 ± 10% V AC, 50/60 Hz |
Power consumption: | during operation: 4,1 W; at closed position (end of stroke): 0 W |
Running time 90°: | 30 s |
Enclosure rating: | IP41 |
Conformity
SI 2016 No. 1105 (UK)
![](/storage/F127235E0974424285122AD9A4A5FA7850E94E689F6422B3E7B290228F78A772/7fc5d351b98a483da0fd7c457f5abdb0/png/media/31c2bff4b4924e0aab82254bba7cf6ab/CE_A-01.png)
EMC 2014/30/EU
RoHS3 2015/863/EU
ErP 2009/125/EU
![](/storage/55A21277313834FAB1E219F841D50C08BB2AF449A1727894DFEDD990DAA2FD3D/6a7be66c68044f85ad8e217f6aed15bd/png/media/0751fb01742e4d329d5b2ff81ea23601/UKCA%20black%20fill.png)
SI 2016 No. 1091
SI 2012 No. 3032
SI 2010 No. 2617
Wiring
Spare parts
Art No. | Reference | Designation | |
![]() |
67001300 | SUS911 | ESBE SUS911 Plate heat exchanger, 30 kW |
![]() |
67001400 | SUS911 | ESBE SUS911 Check valve |
Options
Art No. | Reference | Designation | |
![]() |
62100200 | CSK211 | ESBE CSK211 Controller |
![]() |
62100400 | PSK111 | ESBE PSK111 Pump Wilo PARA 15/8-75/SC 13 |
Download area
Type | Preview | Download |
Data sheet | SKx100 |
|
Installation instruction | SKx100 |
|
Certificate | Declaration of Conformity, SKC100 |
|
Certificate | Building Product Declaration BPD3, SKC100 |
|
Image | SKC111, high res |
|
2D Image | SKC111 |
|
