Circulation unit, Bivalent function
GBA100
- Efficient use of energy thanks to the bivalent valve
- Ready to use with most controllers available on the market
- High class insulation shell
- One size fits all – auto adapt
The ESBE series GBA100 is a circulation mixing unit which is intended for heating circulations where a flow temperature control and an efficient use of energy are required. Equipped with two shut-off valves with thermometers, check valve, high class insulation shell and high efficiency circulation pump.
The GBA100 is delivered with a bivalent rotary mixing valve and actuator. The Circulation Mixing Unit ensures efficient use of energy thanks to the bivalent rotary mixing valve, as well as the working possibility with most controllers available on the market.Product range
GBA111
| Art.no. | Reference | DN | Pump | Connection I | Connection J | Weight [kg] | Note |
| 61060100 | GBA111 | 25 | Wilo 25/6 | G 1" | G 1½" | 5,7 | Actuator ARA661 |
Installation support
Guidance for installers, Circulation Units
Operation
Installation examples
Documents
Technical data
Technical data
| Pressure class: | PN 6 |
| Working pressure: | 0,6 MPa |
| Insulation: | EPP λ 0,036 W/mK |
| EEI (Energy Efficiency Index), circulation pump: | <0,21 |
| Media, Heating water: | in accordance with VDI2035 |
| Media, Water/Glycol mixtures: | max. 50 % (above 20% admixture, the pump data must be checked) |
| Media, Water/Ethanol mixtures: | max. 28 % |
| Media temperature, max.: | +110 °C |
| Media temperature, min.: | 0 °C |
| Ambient temperature, max.: | +50 °C |
| Ambient temperature, min.: | 0 °C |
| Connections, Internal thread (G): | ISO 228/1 |
| Connections, External thread (G): | ISO 228/1 |
| Material, in contact with water |
Components: Brass, Cast iron, Steel Sealing materials: PTFE, Aramid fibre, EPDM |
Integrated pump
| Wilo Yonos Para 25/6-130 RKA | |
| Power supply | 230 ± 10% V AC, 50/60 Hz |
| Power consumption | 3 — 45 W |
| Enclosure rating | IP X4D |
| Insulation class | F |
| EEI (Energy Efficiency Index), circulation pump | <0,20 |
Integrated valve
| ESBE VRB140, DN20-6,3 | |
| max. Differential pressure drop | 100 kPa (1 bar) |
| Close off pressure | 200 kPa (2 bar) |
| Leakrate in % of flow | < 0,5%* |
| * | Differential pressure 100kPa (1 bar) |
| Rangeability Kv/Kv min, A-AB | 100 |
Integrated Actuator
| ESBE ARA661 | |
| Control signal | 3-point SPDT |
| Power supply | 230 ± 10% V AC, 50Hz |
| Power consumption | 5 VA |
| Running time 90° | 120 s |
| Enclosure rating | IP41 |
| Protection class | II |
EMC 2014/30/EU
RoHS3 2015/863/EU
PED 2014/68/EU, article 4.3
Dimensioning
Wiring
Accessories and Spare Parts
Options
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
66001100 | GMA411 | ESBE GMA411 Hydraulic separation for 1 circulation unit. |  |
|
|
 |
66001200 | GMA421 | ESBE GMA421 Manifold for 2 circulation units, without integrated hydraulic separator function. | |
|
|
 |
66001300 | GMA431 | ESBE GMA431 Manifold for 3 circulation units, without integrated hydraulic separator function. | |
|
|
 |
66001400 | GMA441 | ESBE GMA441 Manifold for 4 circulation units, without integrated hydraulic separator function. | |
|
|
 |
66001500 | GMA451 | ESBE GMA451 Manifold for 5 circulation units, without integrated hydraulic separator function. | |
|
|
 |
66001600 | GMA521 | ESBE GMA521 Manifold for 2 circulation units, with integrated hydraulic separator function. | |
|
|
 |
66001700 | GMA531 | ESBE GMA531 Manifold for 3 circulation units, with integrated hydraulic separator function. | |
|
Spare parts
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
67000600 | GSP903 | ESBE GSP903 Thermometer upgrade set, 2 pcs/package | |
|
|
 |
67003400 | GSP911 | ESBE GSP911 Ball valves incl thermometer DN 25, 2 pcs/package | DN25 | |
|
|
67004000 | GSP911 | ESBE GSP911 Ball valves incl thermometer DN 32, 2 pcs/package | DN32 | |
|
 |
67000700 | GSP912 | ESBE GSP912 Adaptor kit VRG&ARA | Adaptor kit for ESBE valves series VRG and Actuators series ARA. DN20-DN32 | |
|
 |
17006900 | VRG802 | ESBE VRG802 Interior kit DN15/20. | |
|
|
 |
17006940 | VRG803 | ESBE VRG803 Knob VRG/VRB. | |
|
|
 |
67004400 | GSP910 | ESBE GSP910 Insulation, Circulation unit DN 25/32 | |
|
|
 |
67000100 | GSP901 | ESBE GSP901 Pump RKA 25/6 Wilo | DN25 | |
|
|
67000300 | GSP901 | ESBE GSP901 Pump RKA 25/7.5 Wilo | DN32 | |
|
 |
67000400 | GSP901 | ESBE GSP901 Pump UPM3 25-50 Grundfos | DN25 | |
|
|
67000500 | GSP907 | ESBE GSP907 Pump Grundfos Hybrid UPM3 25-70 | DN25-DN32 | |
|
Download area
Download area
| Type | Preview | Download |
| Data sheet | GBA100 |
|
| Installation instruction | GBA100 (de, en, fr, it, pl, sv) |
|
| Installation instruction | GBA100 (cs, ee, fi, ru) |
|
| Installation instruction | GBA100, Wilo Pump |
|
| Installation instruction | ARA661, 3-point |
|
| Certificate | Declaration of Conformity, GBA100 |
|
| Certificate | Declaration of Conformity UK CA, GBA100 |
|
| Certificate | Building Product Declaration BPD3, GBA100 |
|
| Certificate | EAC certificate (RU) |
|
| Certificate | UKRSEPRO certificate (UA) |
|
| Image | GBA111, high res |
|
| 2D Image | GBA111 |
|
| 3D drawing (stp file) | GBA111, DN25 |
|
Related materials
Related products
 |
GMA100 | Series GMA100 is manifolds for 2 or 3 circulation units including insulation according to EnEV2014 and wall brackets. | ||
 |
GMA200 | Series GMA200 is manifolds for 2 or 3 circulation units including integrated hydronic junction, insulation according to EnEV2014 and wall brackets. | ||
 |
GMA400, GMA500 | Series GMA400 and GMA500 are manifolds for circulation units including insulation shell according to EnEV2014 and wall brackets | Data sheet | Installation instruction |
Applications
Applications

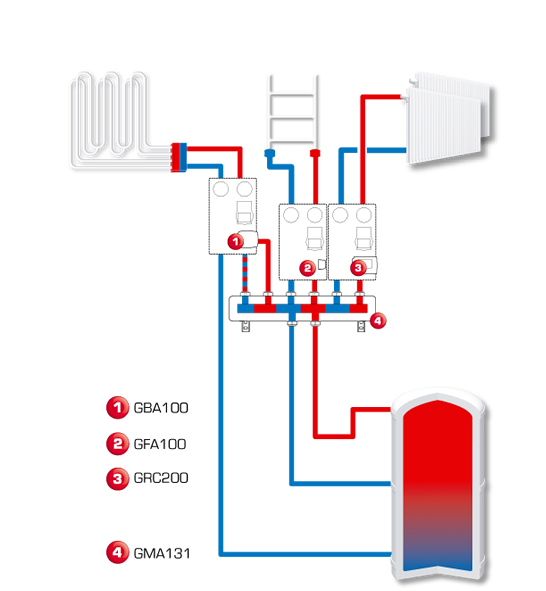

Circulation unit with bivalent valve together with actuator for solid fuel application.
Products
GBA100

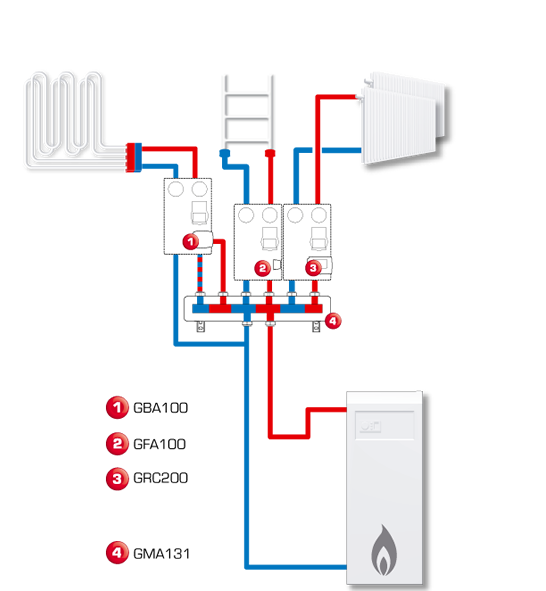

Circulation unit with bivalent valve together with actuator for under floor heating control.
