Actuator
ARA600 2-point
- Reliable and quiet operation.
- Can be used for both 2-point and 3-point control signal.
- Perfect match between the actuator and ESBE valve.
- Auxiliary switch available.
Series ARA600 with 2-point (on/off) signal is suitable for diverting operations together with valves such as VRG230. In these applications will only the end-positions of the actuator operating range be used. The compact actuator is designed for operating rotary valves DN 15-50 and has an operating range of 90°. The series can easily be manually operated by the pull-and-turn knob on the front of the cover. Auxiliary switch, available as premounted or optional kit, can be set in any position and is easily set by a unique solution.
Product range
Installation support
Manual and Automatic operation, ARA600
How to install ARA600 actuator on 3MG valve
How to install ARA600 actuator on VRG valve
ARA600 on VRG130, advantage against 3MG
Documents

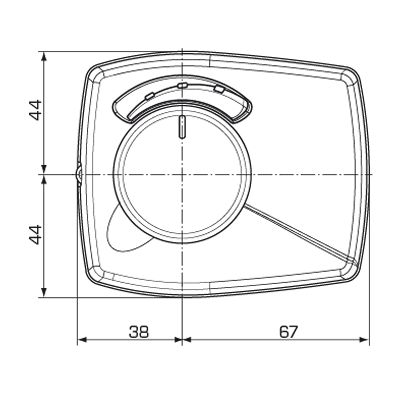

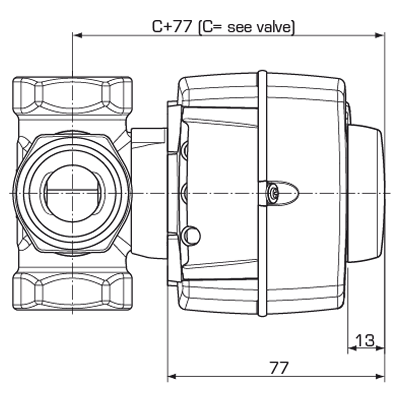

Technical data
Technical data
| Power supply: | 230 ± 10% V AC, 50 Hz |
| Power consumption: | 5 VA |
| Enclosure rating: | IP41 |
| Protection class: | II |
| Torque: | See dimension table |
| Rating auxiliary switch: | 6(3) A 250 V AC |
| Weight: | 0,4 kg |
| Ambient temperature, max.: | +55 °C |
| Ambient temperature, min.: | -5 °C |
Conformity
EMC 2014/30/EU
RoHS3 2015/863/EU
SI 2016 No. 1091
SI 2012 No. 3032
Wiring
Accessories and spare parts
Adaptor Kits
| Art No. | Reference | Designation | Note | Instruction manual | |
 |
16000500 | ARA803 | ESBE ARA803 Adaptor kit ESBE valves series VRx, MG, G, F, BIV, H, HG. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. |  |
 |
16000800 | ARA806 | ESBE ARA806 Adaptor kit Honeywell Centra Corona valves, series V5433A, V5433G, V5442A, V5442G. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
 |
16000900 | ARA808 | ESBE ARA808 Adaptor kit Lovato valves. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
 |
16000600 | ARA805 | ESBE ARA805 Adaptor kit Meibes valves. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
 |
16001000 | ARA809 | ESBE ARA809 Adaptor kit PAW valves. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
 |
16000700 | ARA807 | ESBE ARA807 Adaptor kit Watts valves. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
 |
16001100 | ARA810 | ESBE ARA810 Adaptor kit WITA valves Minimix, Maximix, H10, H9GG, H9MS. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. Order separately. | |
Spare parts
| Art No. | Reference | Designation | Note | Instruction manual | |
 |
17050600 | ARA902 | ESBE ARA902 Knob ARA600 | |
Options
| Art No. | Reference | Designation | Note | Instruction manual | |
 |
16200700 | ARA801 | ESBE ARA801 Auxiliary switch kit ARA600. | |
Download area
Download area
| Type | Preview | Download |
| Data sheet | ARA600, 2-point |
|
| Installation instruction | ARA600, 2-point |
|
| Installation instruction | Auxiliary switch |
|
| Certificate | Declaration of Conformity, ARA600 2-point |
|
| Certificate | Declaration of Conformity UKCA, ARA600 2-point |
|
| Certificate | Building Product Declaration BPD3, ARA600 2-point |
|
| Certificate | EAC certificate (RU), ARA600 2-point 230V |
|
| Certificate | UKRSEPRO certificate (UA), ARA600 2-point |
|
| Image | ARA600, high res |
|
| Image | ARA600 auxiliary switch, high res |
|
| 2D Image | ARA600 |
|
| 3D drawing (stp file) | ARA6x1, ARA6x3, ARA6x5, ARA6x7, ARA6x9 with CW scale position |
|
| 3D drawing (stp file) | ARA6x2, ARA6x4, ARA6x6, ARA6x8 with CW scale position |
|
| 3D drawing (stp file) | ARA6x1, ARA6x3, ARA6x5, ARA6x7, ARA6x9 with CCW scale position |
|
| 3D drawing (stp file) | ARA6x2, ARA6x4, ARA6x6, ARA6x8 with CCW scale position |
|
Related materials
Related products
 |
ARA600 3-point | Series ARA600 with 3-point (open/close) signal is suitable for mixing operations. | Data Sheet | Installation instruction |
 |
VRG230 | Series VRG230 are 3-way valves suitable for midport change-over / diverting operation. | Data sheet | Installation instruction |
 |
MBA130 | Series MBA130 are 3-way diverting valves with actuator | Data Sheet | Installation instruction |
 |
HG | Series HG are 3-way and 4-way control valves for pump flange connections suitable for mixing and double mixing operations in parallel applications. | Data Sheet | |
 |
90 2-point | Series 90 with 2-point (on/off) signal is suitable for diverting operations. | Data Sheet | Installation instruction |
|
ARA600 Proportional | Series ARA600 with proportional (voltage/current) signal is suitable for mixing operations. | Data Sheet | Installation instruction |
 |
VZC, VZD | Series VZC, VZD is a range of compact diverting valves | Data Sheet | Installation instruction |
|
90 Proportional | The Series 90, 15Nm, proportional actuators dedicated for mixing and diverting and flow control applications. | Data sheet | Installation instruction |
 |
VRG230 + ARA600 2-point | Valve series VRG and actuator series ARA delivered as a set in an all-in-one package. |
