Circulation unit, Bivalent function
GBA200
- Bivalent 4-way rotary mixing valve for optimization of system energy usage
- High efficiency circulation pump
- QuickFit interface between actuator and valve - no tools needed
- High class insulation shell
- Pretested and ready to use
- Compact design
- Product available in size DN25
The ESBE series GBA200 is a circulation unit intended for applications where energy management is required. Equipped with two shut-off valves with thermometers, check valve, high class insulation shell and a high efficiency circulation pump.
The circulation units are delivered with a 4-way bivalent rotary mixing valve and 3-point 230V actuator. Thanks to the bivalent valve the circulation unit GBA200 improves energy usage in the system e.g. by using the return of the radiator system to heat the underfloor heating system.
Product range
GBA211
| Art.no. | Reference | DN | Pump | Connection I | Connection J | Weight [kg] | Note |
| 61061100 | GBA211 | 25 | Wilo PARA 25-130/6 | G 1" | G 1½" | 5,8 | Replaces 61060100 |
Installation support
Install ESBE Circulation unit
Operation
Installation examples
The GBA200 secures the correct return temperature to the boiler and keeps the correct stratification in the accumulation tank. The benefit of using a GBA200 is the quick return temperature increase over the dew point which secures the boiler against condensation and tarring. It provides the correct stratification of the temperature in the accumulation tank, no water mixing, which decrease the energy needed to keep the correct temperature in the tank.
In both cases (2 & 3) the GBA200 maximize and optimize the energy usage. The GBA200 is using the return water from the other heating receivers to supply the low temperature heating receiver, as given examples of underfloor heating. Benefit of this solution is to maximize the usage of the energy in the system, and decrease the temperature of the return water in order to maximize the condensing effect when using a condensing boiler. In systems with accumulator tank, stratification of collected water is maintained.
Documents
| Name | Download |
| Installation instruction GBA200 |
|
Technical data
Technical data
| Pressure class: | PN 10 |
| Working pressure: | 1,0 MPa |
| Insulation: | EPP λ 0,036 W/mK |
| EEI (Energy Efficiency Index), circulation pump: | <0,20 |
| Media, Heating water: | in accordance with VDI2035 |
| Media, Water/Glycol mixtures: | max. 50 % ; Water / glycol mixtures are affecting the pump performance. In case of Applications where water / glycol mixtures are used, pump performance should be considered. |
| Media temperature, max.: | +100 ºC |
| Media temperature, min.: | +5 ºC |
| Ambient temperature, max.: | +55 ºC |
| Ambient temperature, min.: | 0 ºC |
| Connections, Internal thread (G): | ISO 228/1 |
| Connections, External thread (G): | ISO 228/1 |
| Material, in contact with water |
Components: Brass, Cast iron, Steel Sealing materials: PTFE, Aramid fibre, EPDM |
Integrated pump
| Wilo PARA 25-130/6-43/SC | |
| Power supply: | 230 ± 10% V AC, 50/60 Hz |
| Power consumption: | 3 — 43 W |
| Enclosure rating: | IP X4D |
| Insulation class: | F |
| EEI (Energy Efficiency Index), circulation pump: | <0,20 |
Integrated valve
| ESBE VRB142, DN20-6,3 QF | |
| max. Differential pressure drop: | 100 kPa (1 bar) |
| Close off pressure: | 200 kPa (2 bar) |
| Leakrate in % of flow: | < 0,5%* |
| *: | Differential pressure 100kPa (1 bar) |
| Rangeability Kv/Kv min, A-AB: | 100 |
Integrated Actuator
| ESBE ARA661 Quick Fit | |
| Control signal: | 3-point SPDT |
| Power supply: | 230 ± 10% V AC, 50Hz |
| Power consumption: | 5 VA |
| Running time 90°: | 120 s |
| Enclosure rating: | IP41 |
| Protection class: | II |
Conformity
SI 2016 No. 1105
EMC 2014/30/EU
RoHS3 2015/863/EU
ErP 2009/125/EU
SI 2016 No. 1091
SI 2012 No. 3032
SI 2010 No. 2617

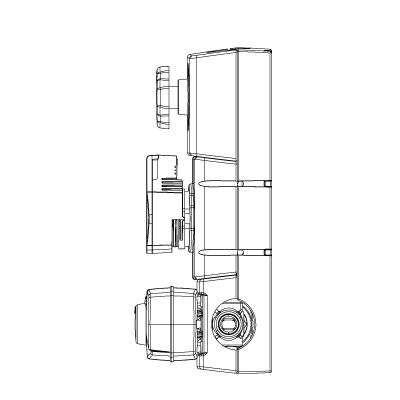

Dimensioning
Wiring
Accessories and spare parts
Options
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
66001100 | GMA411 | ESBE GMA411 Hydraulic separation for 1 circulation unit. | DN25/32 | |
|
 |
66001200 | GMA421 | ESBE GMA421 Manifold for 2 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001300 | GMA431 | ESBE GMA431 Manifold for 3 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001400 | GMA441 | ESBE GMA441 Manifold for 4 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001500 | GMA451 | ESBE GMA451 Manifold for 5 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001600 | GMA521 | ESBE GMA521 Manifold for 2 circulation units, with integrated hydraulic separator function. | DN25/32 | |
|
 |
66001700 | GMA531 | ESBE GMA531 Manifold for 3 circulation units, with integrated hydraulic separator function. | DN25/32 | |
|
Spare parts
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
67003400 | GSP911 | ESBE GSP911 Ball valves incl thermometer DN 25, 2 pcs/package | DN25 | |
|
 |
67005200 | GSP951 | ESBE GSP951 Pump Wilo PARA 25/6 | DN25 | |
|
 |
67006100 | GSP961 | ESBE GSP961 Actuator ARA661 120s 230V 3p QF | |
|
Download area
Download area
| Type | Preview | Download |
| Data sheet | GBA200 |
|
| Installation instruction | GBA200 |
|
| Installation instruction | GBA200, Wilo Pump (de, en, fr) |
|
| Installation instruction | GBA200, Wilo Pump (cs, sk) |
|
| Certificate | Declaration of Conformity, GBA200 |
|
| Certificate | Declaration of Conformity UKCA, GBA200 |
|
| Certificate | Building Product Declaration BPD3, GBA200 |
|
| Certificate | EAC certificate (RU), GBA200 |
|
| Image | GBA211, high res |
|
| 2D Image | GBA211 |
|
| 3D drawing (stp file) | GBA211, DN25 |
|
