Circulation unit, Mixing function
GRA200, GRA300
- Outstanding flow control thanks to the progressive characteristic of the valve
- 2 different types of actuator: 3-point or proportional control signal (depending on version)
- QuickFit interface between actuator and valve - no tools needed
- 3 different high efficiency circulation pumps
- Available in 3 sizes: DN20, DN25, DN32
- High class insulation shell
- Pretested and ready to use
- Compact design
The ESBE series GRA200 and GRA300 are circulation units intended for heating circuits where an outstanding flow and temperature control are required. Equipped with two shut-off valves with thermometers, check valve, high class insulation shell and a high efficiency circulation pump. The units are delivered with a 3-way rotary progressive mixing valve which ensures best regulation performances independent from flow rate and low oversizing risk.
The Series GRA200 comes with actuator series ARA661 with 3-point control signal, 230V AC, or actuator series ARA639 proportional control signal,24V AC/DC. The circulation units are available in DN25 and DN32 and are equipped with either a Wilo or Grundfos pump.

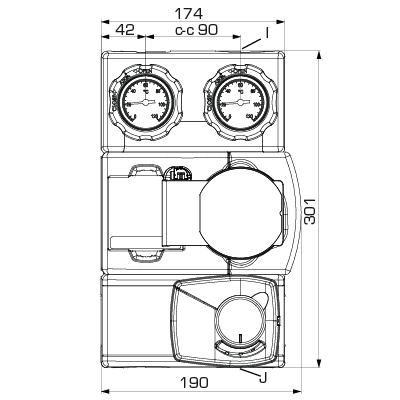

The series GRA300, with very compact dimensions, comes with actuator series ARA661. Series GRA300 is available in DN20 and are equipped with a Wilo pump.
Product range

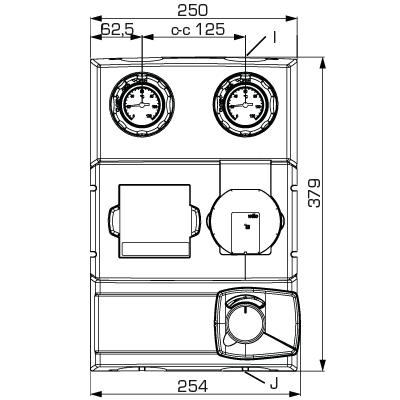

GRA211
| Art.no. | Reference | DN | Pump | Connection I | Connection J | Weight [kg] | Note |
| 61042100 | GRA211 | 25 | Wilo PARA 25/6 | G 1" | G 1½" | 5,8 | Replaces 61040100 |
| 61042200 | GRA211 | 32 | Wilo PARA 25/8 | G 1¼" | G 1½" | 6,2 | Replaces 61040400 |
GRA212
| Art.no. | Reference | DN | Pump | Connection I | Connection J | Weight [kg] | Note |
| 61042300 | GRA212 | 25 | Grundfos UPM3 AUTO 25-50 | G 1" | G 1½" | 5,9 | Replaces 61040500 |
| 61042400 | GRA212 | 32 | Grundfos UPM3 AUTO 25-70 | G 1¼" | G 1½" | 6,1 | Replaces 61040600 |
GRA231
| Art.no. | Reference | DN | Pump | Connection I | Connection J | Weight [kg] | Note |
| 61042500 | GRA231 | 25 | Wilo PARA 25/6 | G 1" | G 1½" | 5,8 | Replaces 61043200 |
| 61042600 | GRA231 | 32 | Wilo PARA 25/8 | G 1¼" | G 1½" | 6,2 | Replaces 61043300 |

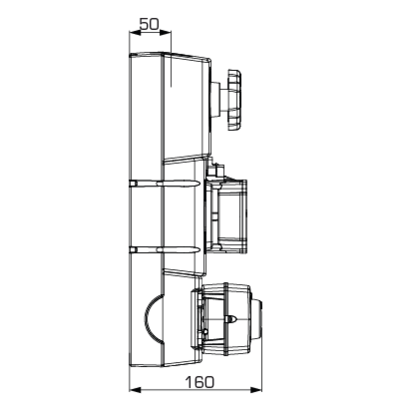

GRA232
| Art.no. | Reference | DN | Pump | Connection I | Connection J | Weight [kg] | Note |
| 61042700 | GRA232 | 25 | Grundfos UPM3 AUTO 25-50 | G 1" | G 1½" | 5,9 | Replaces 61043400 |
| 61042800 | GRA232 | 32 | Grundfos UPM3 AUTO 25-70 | G 1¼" | G 1½" | 6,1 | Replaces 61043500 |
GRA311
| Art.no. | Reference | DN | Pump | Connection I | Connection J | Weight [kg] | Note |
| 61043600 | GRA311 | 20 | Wilo PARA STG 15/8 | G ¾" | G 1" | 4,5 | Replaces 61043100 |

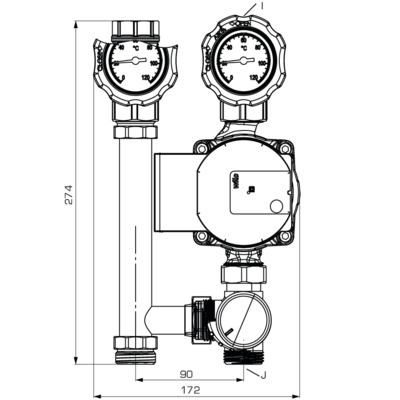

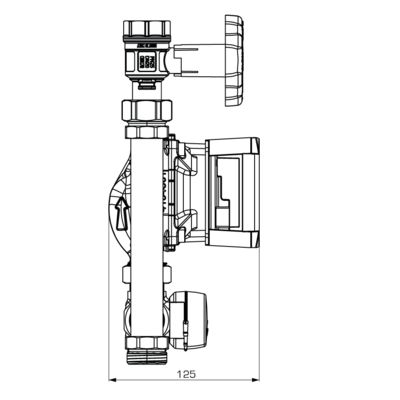

GRA394
| Art.no. | Reference | DN | Pump | Connection I | Connection J | Weight [kg] | Note |
| 61045800 | GRA394 | 20 | Wilo PARA 15/6 | G ¾" | G 1" | 3,4 | without actuator and insulation shell |
Installation support
Install ESBE Circulation unit
Operation
Installation example
Documents
Technical data
Technical data
| Pressure class: | PN 10 |
| Working pressure: | 1,0 MPa |
| Insulation: | EPP λ 0,036 W/mK |
| Media, Heating water: | in accordance with VDI2035 |
| Media, Water/Glycol mixtures: | max. 50 % ; water / glycol mixtures are affecting the pump performance. In case of Applications where water / glycol mixtures are used, pump performance should be considered. |
| Media temperature - Series GRA211, GRA231: | min. +5°C, max. +100°C |
| Media temperature - Series GRA212, GRA232: | min. +5°C, max. +110°C |
| Media temperature - Series GRA300: | min. +5°C, max. +100°C |
| Ambient temperature: | min. 0°C, max. +55°C |
| Connections, Internal thread (G): | ISO 228/1 |
| Connections, External thread (G): | ISO 228/1 |
| Material, in contact with water |
Components: Brass, Cast iron, Steel Sealing materials: PTFE, Aramid fibre, EPDM |
Integrated pump
| Wilo PARA 25-130/6-43/SC | |
| Power supply: | 230 ± 10% V AC, 50/60 Hz |
| Power consumption: | 3 — 43 W |
| Enclosure rating: | IP X4D |
| Insulation class: | F |
| EEI (Energy Efficiency Index), circulation pump: | <0,20 |
| Wilo PARA 25-130/8-75/SC | |
| Power supply: | 230 ± 10% V AC, 50/60 Hz |
| Power consumption: | 10 — 75 W |
| Enclosure rating: | IP X4D |
| Insulation class: | F |
| EEI (Energy Efficiency Index), circulation pump: | <0,21 |
| Grundfos UPM3 AUTO 25-50 130 | |
| Power supply: | 230 ± 10% V AC, 50/60 Hz |
| Power consumption: | 4 — 33 W |
| Enclosure rating: | IP44 |
| EEI (Energy Efficiency Index), circulation pump: | <0,20 |
| Grundfos UPM3 AUTO 25-70 130 | |
| Power supply: | 230 ± 10% V AC, 50/60 Hz |
| Power consumption: | 2 — 52 W |
| Enclosure rating: | IP44 |
| EEI (Energy Efficiency Index), circulation pump: | <0,20 |
| Wilo PARA STG 15-130/8-60/0 | |
| Power supply: | 230 ± 10% V AC, 50/60 Hz |
| Power consumption: | 2 — 60 W |
| Enclosure rating: | IP X4D |
| Insulation class: | F |
| EEI (Energy Efficiency Index), circulation pump: | <0,20 |
| Wilo PARA 15-130/6-43/SCU | |
| Power supply: | 230 ± 10% V AC, 50/60 Hz |
| Power consumption: | 3 — 43 W |
| Enclosure rating: | IP X4D |
| Insulation class: | F |
| EEI (Energy Efficiency Index), circulation pump: | <0,20 |
Integrated valve
| ESBE VRG438, DN20-8 QF | |
| Pressure class: | PN10 |
| Kvs: | 8 |
| max. Differential pressure drop: | 100 kPa (1 bar) |
| Close off pressure: | 200 kPa (2 bar) |
| Leakrate in % of flow: | <0,05%* |
| *: | Differential pressure 100 kPa (1 bar) |
| ESBE VRG432, DN20-8 QF | |
| Pressure class: | PN10 |
| Kvs: | 8 |
| max. Differential pressure drop: | 100 kPa (1 bar) |
| Close off pressure: | 200 kPa (2 bar) |
| Leakrate in % of flow: | <0,05%* |
| *: | Differential pressure 100 kPa (1 bar) |
| ESBE VRG432, DN25-12 QF | |
| max. Differential pressure drop: | 100 kPa (1 bar) |
| Close off pressure: | 200 kPa (2 bar) |
| Leakrate in % of flow: | < 0,05%* |
| *: | Differential pressure 100kPa (1 bar) |
Integrated Actuator
| ESBE ARA661 Quick Fit | |
| Control signal: | 3-point SPDT |
| Power supply: | 230 ± 10% V AC, 50Hz |
| Power consumption: | 5 VA |
| Running time 90°: | 120 s |
| Enclosure rating: | IP41 |
| Protection class: | II |
| ESBE ARA661 Quick Fit | |
| Control signal: | 3-point SPDT |
| Power supply: | 230 ± 10% V AC, 50Hz |
| Power consumption: | 5 VA |
| Running time 90°: | 120 s |
| Enclosure rating: | IP41 |
| Protection class: | II |
| ESBE ARA639 Quick Fit | |
| Control signal: | Proportional |
| Feedback signal, "U": | 2-10 V AC |
| Power supply: | 24 ± 10% V AC/DC, 50/60 Hz |
| Power consumtion - Operation: | AC: 5 W / DC: 2,5 W |
| Power consumption - Dimensioning: | AC: 11 VA / DC: 6 VA |
| Running time 90°: | 15/30/60/120 s |
| Enclosure rating: | IP41 |
| Protection class: | II |
Conformity
SI 2016 No. 1105
EMC 2014/30/EU
RoHS3 2015/863/EU
ErP 2009/125/EU
SI 2016 No. 1091
SI 2012 No. 3032
SI 2010 No. 2617
Dimensioning
Wiring
Accessories and spare parts
Spare parts
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
67006100 | GSP961 | ESBE GSP961 Actuator ARA661 120s 230V 3p QF |  |
|
|
|
67006200 | GSP962 | ESBE GSP962 Actuator ARA639 Prop 15-120s 24V QF | |
|
|
 |
67003300 | GSP933 | ESBE GSP933 Ball valves incl thermometer DN20 G¾", 2 pcs/package | DN20, G¾" | |
|
|
67003800 | GSP933 | ESBE GSP933 Ball valves incl thermometer DN20 G1", 2 pcs/package | DN20, G1" | |
|
 |
67003400 | GSP911 | ESBE GSP911 Ball valves incl thermometer DN 25, 2 pcs/package | DN25 | |
|
|
67004000 | GSP911 | ESBE GSP911 Ball valves incl thermometer DN 32, 2 pcs/package | DN32 | |
|
 |
67005600 | GSP932 | ESBE GSP932 Pump Wilo STG 15/8 | DN20 | |
|
 |
67004200 | GSP942 | ESBE GSP942 Pump Wilo PARA 15-130/6-43 SCU | DN20 | |
|
 |
67005200 | GSP951 | ESBE GSP951 Pump Wilo PARA 25/6 | DN25 | |
|
 |
67005400 | GSP952 | ESBE GSP952 Pump Grundfos UPM3 AUTO 25-50 | DN25 | |
|
 |
67005300 | GSP951 | ESBE GSP951 Pump Wilo PARA 25/8 | DN32 | |
|
 |
67005500 | GSP952 | ESBE GSP952 Pump Grundfos UPM3 AUTO 25-70 | DN32 | |
|
Options
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
12520100 | ARA639 | ESBE ARA639 Actuator 24V | |
|
|
|
12101300 | ARA661 | ESBE ARA661 Actuator 230V | |
|
|
 |
12721100 | CRA211 | ESBE CRA211 Controller | |
|
|
 |
12684200 | CRD221 | ESBE CRD221 Controller | |
|
|
 |
66000500 | GMA321 | ESBE GMA321 Manifold for 2 circulation units, without integrated hydraulic separator function. | DN20 | |
|
 |
66000600 | GMA331 | ESBE GMA331 Manifold for 3 circulation units, without integrated hydraulic separator function. | DN20 | |
|
 |
66001100 | GMA411 | ESBE GMA411 Hydraulic separation for 1 circulation unit. | DN25/32 | |
|
 |
66001200 | GMA421 | ESBE GMA421 Manifold for 2 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001300 | GMA431 | ESBE GMA431 Manifold for 3 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001400 | GMA441 | ESBE GMA441 Manifold for 4 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001500 | GMA451 | ESBE GMA451 Manifold for 5 circulation units, without integrated hydraulic separator function. | DN25/32 | |
|
 |
66001600 | GMA521 | ESBE GMA521 Manifold for 2 circulation units, with integrated hydraulic separator function. | DN25/32 | |
|
 |
66001700 | GMA531 | ESBE GMA531 Manifold for 3 circulation units, with integrated hydraulic separator function. | DN25/32 | |
|
