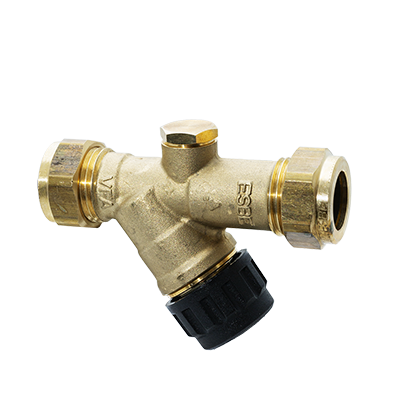

Filling valve
VFA200
- With built-in shut-off and controllable check valve functions.
Filling valves series VFA200 for the filling of heating system and other closed fluid systems. The valve series VFA200 has built-in shut-off and check valve . The check valve is controlable with backflow protection type EA complying with EN1717.
Product range
VFA203, Compression fitting
![VFA200.png](/storage/DEF293E3C7D40D7E37975ADC2FA7331CEC18F1A7716758A22C5AEFD2B4A51528/6c743be2d1514637ab05dcbfe14eb356/160-160-0-png.Png/media/6db37f22e42f4a03b4f48a112d5ece84/VFA200.png)
![VFA200 front_A-01.png](/storage/E29D580FB0B23842CB0C77F5707C3E95D9E6FBFF8AFEE7469B9F3864E69866B2/b4621e1c670b4f1a97226ff3b1525b64/160-160-0-png.Png/media/b20c2a49c3354a64a5db9fabb5390d33/VFA200%20front_A-01.png)

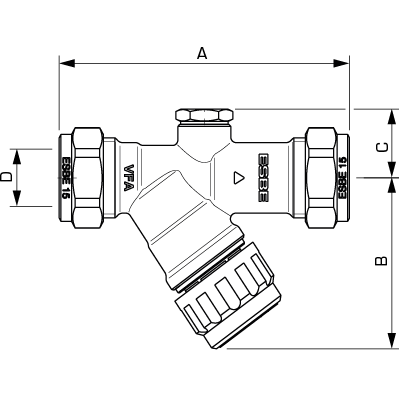

Art.no. | Reference | DN | Kvs | Connection D | A [mm] | B [mm] | C [mm] | Weight [kg] |
36301100 | VFA203 | 15 | 2,3 | CPF 15 mm | 82 | max. 50 | 18 | 0,22 |
Technical data
Technical data
Pressure class: | PN 16 |
Connections: | Compression fitting (CPF), EN 1254-2 |
Working temperature, max.: | +100 °C |
Material, Valve housing and other metal parts with fluid contact: | Dezincification resistant brass, DZR* |
*Suitable for drinking water applications | |
Material, Seat seal: | Silicone |
Material, O-rings: | EPDM |
Material, Knob: | Plastic |
Conformity
SI 2016 No. 1105 (UK)
4MS/KTW-BWGL
![](/storage/321497FA0E48EAA3DA58BD28AAA462CD860FCCAA1D01924844C733E462B13C63/1d12233666764a75932c6c24b532b494/png/media/d751858a06804ef8b5cf7fbee2f7ca1a/UKRSEPRO.png)
![](/storage/86B29CAFD1FCBEAE1F4CFA3CBF4DC5DBCB829BCC6486F992C01F9672681B61B8/6d25dcbe4c8340b88f01efbe2702498d/png/media/f14801934e5f471fb471cfbdf08c55ea/PZH_A-01.png)
Download area
Download area
Type | Preview | Download |
Data Sheet | VFA200 |
|
Installation instruction | VFA200 |
|
Certificate | Declaration of Conformity, VFA200 |
|
Certificate | Declaration of Conformity UKCA, VFA200 |
|
Certificate | Building Product Declaration BPD3, VFA200 |
|
Certificate | UKRSEPRO certificate (UA), VFA200 |
|
Image | VFA203, high res |
|
2D Image | VFA200 |
|
3D drawing (stp file) | VFA203, DN15 |
|
