Product range
Technical data
Technical data
| Pressure class: | PN 16 |
| Connections: | External thread (G), ISO 228/1 |
| Working temperature, max.: | +90 °C |
| Material, Valve housing and other metal parts with fluid contact: | Dezincification resistant brass, DZR* |
| *Suitable for drinking water applications | |
| Material, Plug: | Plastic |
| Material, O-rings: | EPDM |
Conformity
SI 2016 No. 1105 (UK)
Download area
Download area
| Type | Preview | Download |
| Data Sheet | VDA100 |
|
| Certificate | Declaration of Conformity, VDA100 |
|
| Certificate | Declaration of Conformity UKCA, VDA100 |
|
| Certificate | Building Product Declaration BPD3, VDA100 |
|
| Certificate | EAC certificate (RU), VDA100 |
|

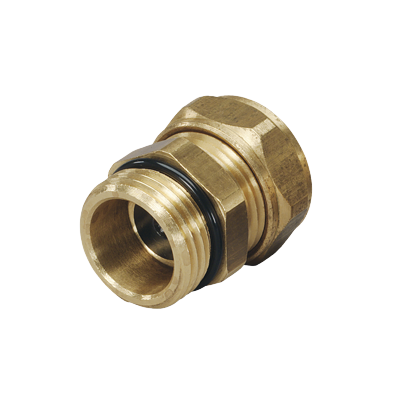

| Image | VDA100, high res |
|

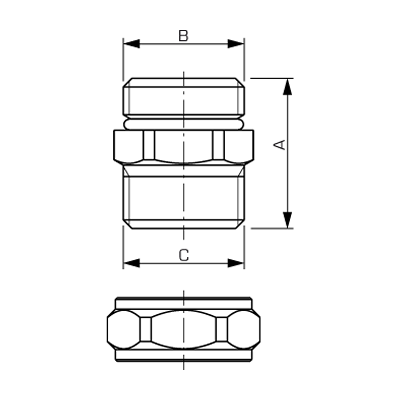

| 2D Image | VDA100 |
|
