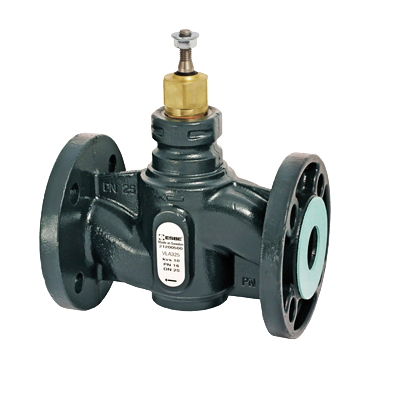

Control valve PN16
VLA300, VLB300
- Superb regulation for best mixing and flow regulating performance up to 16 bar (PN16).
- Real low internal leakrate and 100% tested product.
- Long lasting and high durability.
- Perfect match between the valve and ESBE actuators.
Series VLA-VLB are 2-way and 3-way control valves with flange connection PN16 and higher flow rates, suitable for mixing and flow regulation up to 16 bar. The valves are made of high-performing nodular iron allowing use in heating and cooling installations. The VLA-VLB series is available in 2-way DN15-DN150 ; 3-way DN15-150 and comes with one type of connection. The valve is perfectly combined with ESBE actuators and controllers.
Product range
Installation support
Installation examples, 2-way Control Valves
Installation examples, 3-way Control Valves
Documents
| Name | Download |
| Installation instruction VLB325, VLB335 |
|
Technical data
Technical data
| Type: | 2- and 3-way plug valve |
| Pressure class: | PN 16 |
| Flow characteristic A-AB: | EQM |
| Flow characteristic B-AB: | DN15-50: Complementary; DN65-150: Linear |
| Stroke: | DN15-50: 20mm; DN65: 25mm; DN80-150: 45mm |
| Rangeability Kv/Kv min: | DN15-50: see data sheet; DN65-150: >50 |
| Leakrate A - AB: | DN15-50: Tight sealing; DN65-150: 0,03% of Kvs |
| Leakrate B - AB: | DN15-50: Tight sealing; DN65-150: 2% of Kvs |
| ΔP: | see data sheet |
| Media temperature, max.: | DN15-50: +130°C; DN65-150: +150°C |
| Media temperature, min.: | DN15-50: -20°C; DN65-150: -10°C |
| Connections: | Flange, ISO 7005-2 |
| Media, Heating water: | in accordance with VDI2035 |
| Media, Water/Glycol mixtures: | max. 50 % |
| Media, Water/Ethanol mixtures: | max. 28 % |
| Material, Body: | DN15-50: Nodular iron, EN-JS 1030; DN65-150: Grey cast iron, EN-JL 1040 |
| Material, Stem: | DN15-50: Stainless steel, SS 2346; DN65-150: Stainless steel, DIN 1.4305 |
| Material, Plug: | DN15-50: Brass, CW 602N; DN65-150: Brass, CW617N |
| Material, Seat: | DN15-50: Nodular iron, EN-JS 1030; DN65-150: Grey cast iron, EN-JL 1040 |
| Material, Blind plug: | DN15-50: Brass, CW 602N |
| Material, Seat seal: | DN15-50: EPDM; DN65-150: Metallic |
| Material, Packing box seal: | DN15-50: PTFE/EPDM; DN65-150: EPDM |
Conformity
SI 2016 No. 1105 (UK)

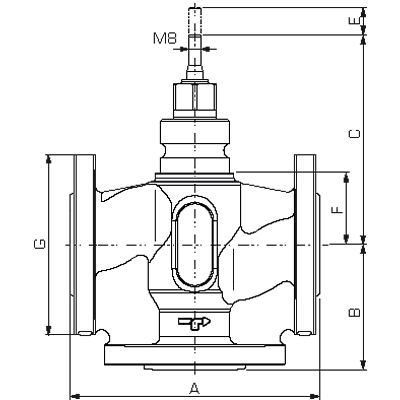

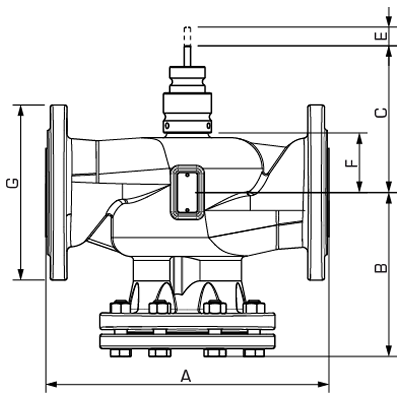

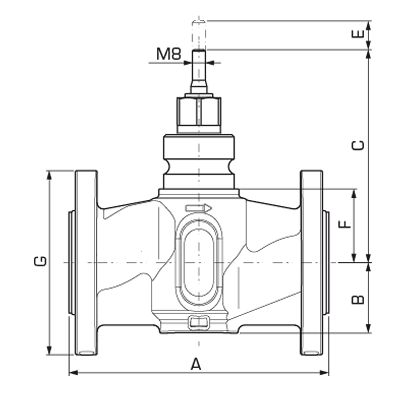

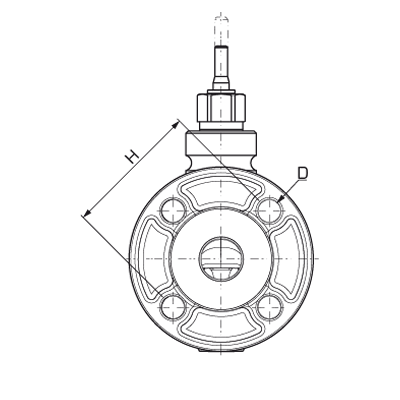

Dimensioning
Accessories and spare parts
Spare parts
| Art No. | Reference | Designation | Note | Instruction manual | |
 |
27000700 | VLB901 | ESBE VLB901 Exchange kit Packing box | Applies to valve type VLB1xx, VLB2xx | |
 |
27000800 | VLB903 | ESBE VLB903 Exchange kit Packing box | Applies to valve type VLB3xx | |
|
27000100 | VLA901 | ESBE VLA901 Exchange kit Packing box | Applies to valve type VLAxxx, VLExxx | |
Adaptor Kits
| Art No. | Reference | Designation | Note | Instruction manual | |
 |
26000700 | VLA821 | ESBE VLA821 Adaptor kit Siemens SQX actuators. | For valves DN 15-50. | |
