Control valve PN16
VLE100
- Superb regulation for best mixing, diverting (delta P< 50kpa) and flow regulating performance up to 16 bar (PN16).
- Real low internal leakrate and 100% tested product.
- Long lasting and high durability.
- Perfect match between the valve and ESBE actuators.
Series VLE are 2-way and 3-way control valves suitable for mixing, diverting (ΔP< 50kpa) and flow regulation up to 16 bar. The valves are made of high-performing bronze allowing use in heating and cooling installations. The VLE series is available in 2-way DN15-DN50 and 3-way DN15-50, and comes with one type of connection. The valve is perfectly combined with ESBE actuators and controllers.
Product range
Technical data
Technical data
| Type: | 2- and 3-way plug valve |
| Pressure class: | PN 16 |
| Flow characteristic A-AB: | EQM |
| Flow characteristic B-AB: | Complementary |
| Stroke: | 20 mm |
| Rangeability Kv/Kv min: | see table |
| Leakrate A - AB: | DN15: max. 0,02% of Kv 4; DN20-50: max. 0,02% of Kvs |
| Leakrate B - AB: | DN15: max. 0,05% of Kv 4; DN20-50: max. 0,05% of Kvs |
| ΔP: | see data sheet |
| Media temperature, max.: | +150 °C |
| Media temperature, min.: | -20 °C |
| Connections: | External thread (G), ISO 228/1 |
| Media, Heating water: | in accordance with VDI2035 |
| Media, Water/Glycol mixtures: | max. 50 % |
| Media, Water/Ethanol mixtures: | max. 28 % |
| Material, Body: | Bronze, Rg5 |
| Material, Stem: | Stainless steel, SS 2346 |
| Material, Plug: | Stainless steel, SS 2346 |
| Material, Seat: | Stainless steel, SS 2346 |
| Material, Blind plug: | Brass, CW 602N |
| Material, Seat seal: | Metallic |
| Material, Packing box seal: | PTFE/EPDM |
Conformity
SI 2016 No. 1105 (UK)
Dimensioning
Accessories and spare parts
Adaptor Kits
| Art No. | Reference | Designation | Note | Instruction manual | |
 |
26000700 | VLA821 | ESBE VLA821 Adaptor kit Siemens SQX actuators. | For valves DN 15-50. |  |
Spare parts
| Art No. | Reference | Designation | Note | Instruction manual | |
 |
27000100 | VLA901 | ESBE VLA901 Exchange kit Packing box | Applies to valve type VLAxxx, VLExxx | |
Download area
Download area
| Type | Preview | Download |
| Data sheet | VLE100 |
|
| Certificate | Declaration of Conformity, VLE100 |
|
| Certificate | Declaration of Conformity UKCA, VLE100 |
|
| Certificate | Building Product Declaration BPD3, VLE100 |
|
| Certificate | EAC certificate (RU), VLE100 |
|
| Certificate | UKRSEPRO certificate (UA), VLE100 |
|
| Image | VLE122, high res |
|
| Image | VLE132, high res |
|

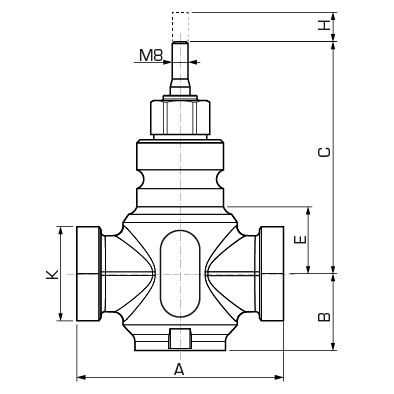

| 2D Image | VLE122 |
|

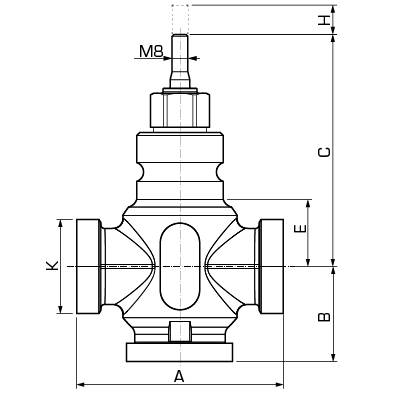

| 2D Image | VLE132 |
|
| 3D drawing (stp file) | VLE122, DN15 |
|
| 3D drawing (stp file) | VLE132, DN15 |
|
| 3D drawing (stp file) | VLE122, DN20 |
|
| 3D drawing (stp file) | VLE132, DN20 |
|
| 3D drawing (stp file) | VLE122, DN25 |
|
| 3D drawing (stp file) | VLE132, DN25 |
|
| 3D drawing (stp file) | VLE122, DN32 |
|
| 3D drawing (stp file) | VLE132, DN32 |
|
| 3D drawing (stp file) | VLE122, DN40 |
|
| 3D drawing (stp file) | VLE132, DN40 |
|
| 3D drawing (stp file) | VLE122, DN50 |
|
| 3D drawing (stp file) | VLE132, DN50 |
|
