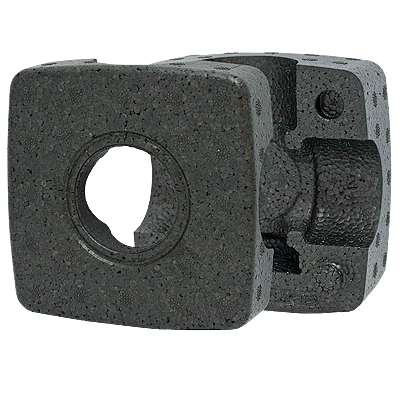

Insulation shell
VRI100
- Insulation according to EnEV2009.
- Reduce heatlosses by 65%.
- Shells specially designed for ESBE valves and offering a tight seal.
- Avoid burning injures from hot valves.
Series VRI100 is a range of insulation shells for the valve series VRG and VRB and is available for sizes DN15-DN40. The insulation shells is developed according to the directive EnEV2009 and offers a tight seal around the valve to air-circulations and heat-losses. The shell is designed with a strong self-locking function and there is no need of extra accessories, like tape or springs, to keep the two shells together.
Product range
Installation support
VRI100 Installation movie
Technical data
Technical data
| λ coefficient: | 0,035 W/mK |
| Media temperature, max.: | +130 °C |
| Media temperature, min.: | -20 °C |
| Ambient temperature, max.: | +130 °C |
| Ambient temperature, min.: | ‒20 °C |
| Material: | EPP black 35g/l |
Conformity
Download area
Download area
| Type | Preview | Download |
| Data Sheet | VRI100 |
|
| Certificate | EAC certificate (RU), VRI100 |
|
| Image | VRI100, high res |
|

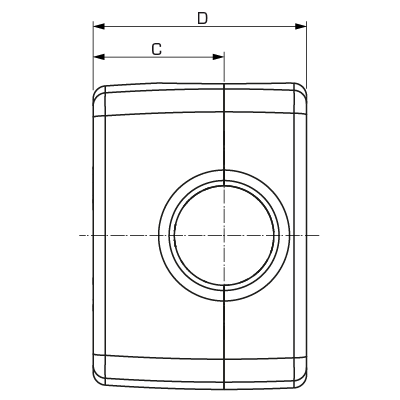

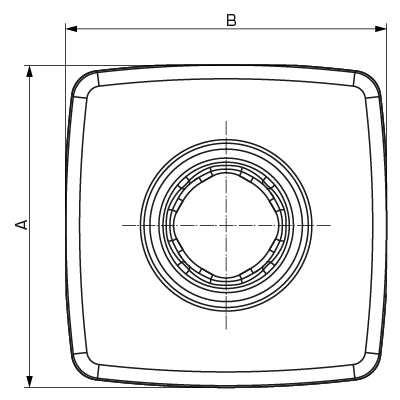

| 2D image | VRI100 |
|
| 3D drawing (stp file) | VRI111, DN15-20 |
|
| 3D drawing (stp file) | VRI111, DN25 |
|
| 3D drawing (stp file) | VRI111, DN32 |
|
| 3D drawing (stp file) | VRI111, DN40 |
|
