Change-over/Diverting valve
VRG230
- Superb regulation for best change over/diverting performance.
- Compact, flexible and easy to install.
- Long lasting and high durability.
- Perfect match between the valve and ESBE actuators.
Series VRG230 are 3-way valves suitable for midport change-over / diverting operation. The valves are made of the high-performing brass allowing use in heating and cooling installations. The VRG series is available in DN15-50 and comes with different types of connections to suit most pipe dimensions. The valve is perfectly combined with ESBE actuators and controllers.
Product range
Installation support
Install ESBE 3-way valve - VRG230
How to install ARA600 actuator on VRG valve
Installation examples
Characteristic graph, VRGxx0 valves
How to set ESBE 3-way valve in 45° position/50% open (VRG)
Exchange interior kit to repair VRG & VRB - ESBE Rotary valves
Operation
Installation example
Documents
| Name | Download |
| Installation instruction VRG230 |
|
Technical data
Technical data
| Pressure class: | PN10 |
| Torque (at nominal pressure): | DN15-32: < 3 Nm; DN40-50: < 5 Nm |
| Leakrate in % of flow: | <0,5 |
| Working pressure: | 1 MPa |
| max. Differential pressure drop, Mixing: | 100 kPa |
| max. Differential pressure drop, Diverting: | 200 kPa |
| Close off pressure: | 200 kPa |
| Rangeability Kv/Kv min, A-AB: | 100 |
| Media, Heating water: | in accordance with VDI2035 |
| Media, Water/Glycol mixtures: | max. 50 % |
| Media, Water/Ethanol mixtures: | max. 28 % |
| Media temperature, max. (continuosly): | +110 °C |
| Media temperature, max. (temporarily): | +130 °C |
| Media temperature, min.: | -10 °C |
| Connections, Internal thread (Rp): | EN 10226-1 |
| Connections, External thread (G): | ISO 228/1 |
| Material, Valve body: | Dezincification resistant brass, DZR |
| Material, Slide: | Abrasion resistant brass |
| Material, Shaft and bushing: | PPS composite |
| Material, O-rings: | EPDM |
Conformity
SI 2016 No. 1105 (UK)
Valve characteristics

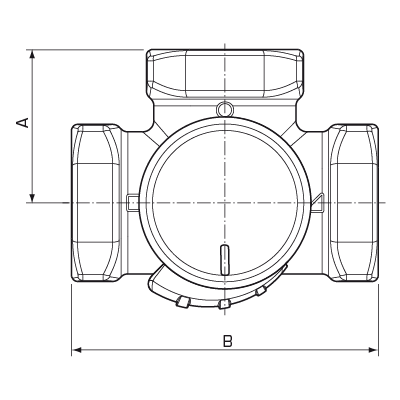

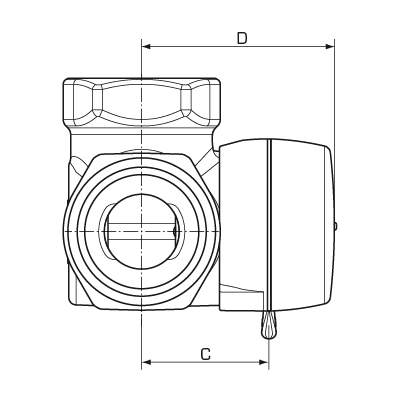

Dimensioning
Accessories and spare parts
Spare parts
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
17006900 | VRG802 | ESBE VRG802 Interior kit DN15/20. | |
|
|
|
17006910 | VRG802 | ESBE VRG802 Interior kit DN25. | |
|
|
|
17006920 | VRG802 | ESBE VRG802 Interior kit DN32/40. | |
|
|
|
17006930 | VRG802 | ESBE VRG802 Interior kit DN40/50. | |
|
|
|
17006950 | VRG802 | ESBE VRG802 Interior kit DN50 | |
|
|
 |
17006940 | VRG803 | ESBE VRG803 Knob VRG/VRB. | |
|
Options
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
16103800 | VRI111 | ESBE VRI111 Insulation shell DN 15/20 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. | DN 15/20 | |
|
|
16103900 | VRI111 | ESBE VRI111 Insulation shell DN25 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. | DN25 | |
|
|
16104000 | VRI111 | ESBE VRI111 Insulation shell DN32 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. | DN32 | |
|
|
16104100 | VRI111 | ESBE VRI111 Insulation shell DN40 for insulation of ESBE valve series VRG100, VRG200, VRG300 and VRB100. | DN40 | |
|
Connection kit KTD100
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
36551700 | KTD112 | Connection kit with external thread R ¾" for use on externally threaded valves G 1". | Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. | |
|
|
36551800 | KTD112 | Connection kit with external thread R 1" for use on externally threaded valves G 1¼". | Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. | |
|
|
36551900 | KTD112 | Connection kit with external thread R 1¼" for use on externally threaded valves G 1½". | Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. | |
|
|
36552000 | KTD112 | Connection kit with external thread R 1½" for use on externally threaded valves G 2". | Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. | |
|
|
36552100 | KTD112 | Connection kit with external thread R 2" for use on externally threaded valves G 2¼". | Suits series VRG132, VRG142, VRG232, VRG332 and VRB142. | |
|
Adaptor Kits
| Art No. | Reference | Designation | Note | Data sheet | Instruction manual | |
 |
16053700 | VRG804 | ESBE VRG804 Adaptor kit ESBE valves series VRx without hand lever for controller 90C. | Series 90C. Comes with the controller. | |
|
 |
16053300 | VRG801 | ESBE VRG801 Adaptor kit ESBE valves series VRG, VRH, VRB, VRS, VRP. | Series 90, CRA120, CRC120. Order separately. | |
|
 |
16000500 | ARA803 | ESBE ARA803 Adaptor kit ESBE valves series VRx, MG, G, F, BIV, H, HG. | Series ARA600, CRA110, CRA140, CRA150, CRB100, CRC110, CRC140, CRD120, CRS130. | |
|
Download area
Download area
| Type | Preview | Download |
| Data sheet | VRG230 |
|
| Installation instruction | VRG230 |
|
| Certificate | Declaration of Conformity, VRG230 |
|
| Certificate | Declaration of Conformity UKCA, VRG230 |
|
| Certificate | Building Product Declaration BPD3, VRG230 |
|
| Certificate | EAC certificate (RU), VRG230 |
|
| Certificate | UKRSEPRO certificate (UA), VRG230 |
|
| Approval | PZH-certificate (PL), VRG230 |
|
| Image | VRG231, high res |
|
| Image | VRG232, high res |
|
| 2D image | VRG230 |
|
| 3D drawing (stp file) | VRG231, DN20 |
|
| 3D drawing (stp file) | VRG232, DN20 |
|
| 3D drawing (stp file) | VRG231, DN25 |
|
| 3D drawing (stp file) | VRG232, DN25 |
|
| 3D drawing (stp file) | VRG231, DN32 |
|
| 3D drawing (stp file) | VRG232, DN32 |
|
| 3D drawing (stp file) | VRG231, DN40 |
|
| 3D drawing (stp file) | VRG232, DN40 |
|
| 3D drawing (stp file) | VRG231, DN50 |
|
| 3D drawing (stp file) | VRG232, DN50 |
|
