Product range
Technical data
Technical data
| Pressure class: | PN 10 |
| Media temperature, max.: | +120 °C |
| Media temperature, min.: | -20 °C |
| Connection, Nipple design acc. to: | EN 1254-4 |
| Connection, Internal thread (G): | ISO 228/1 |
| Connection, Compression fitting (CPF): | EN 1254-2 |
| Material, Nut: | Brass, CW 614N |
| Material, Connection piece: | Dezincification resistant brass, DZR* |
| Material, Gasket: | Klingersil C-4400 |
| Material, Compression fitting nut: | Brass, CW 614N |
| Material, Compression ring: | Dezincification resistant brass, DZR* |
| *Suitable for drinking water applications |
Conformity
SI 2016 No. 1105 (UK)
Download area
Download area
| Type | Preview | Download |
| Data Sheet | KCD300 |
|
| Certificate | Declaration of Conformity, KCD300 |
|
| Certificate | Declaration of Conformity UKCA, KCD300 |
|
| Certificate | Building Product Declaration BPD3, KCD300 |
|
| Certificate | EAC certificate (RU), KCD300 |
|

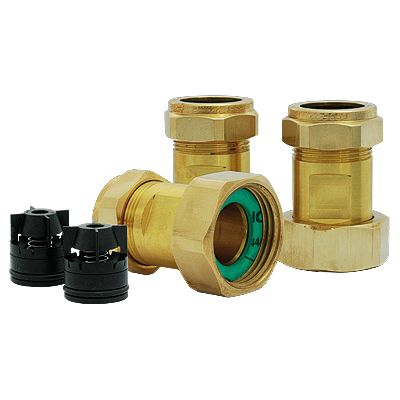

| Image | KCD313 Brass, high res |
|

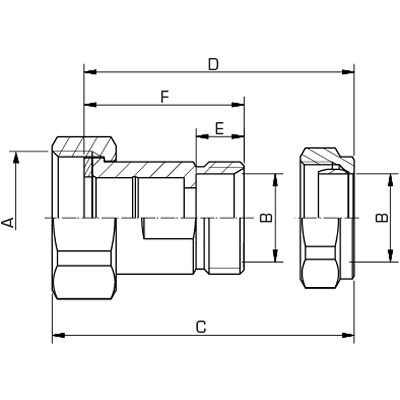

| 2D Image | KCD300 |
|
