Product range
Technical data
Technical data
| Pressure class: | PN 16 |
| Media temperature, max.: | +150 °C |
| Media temperature, min.: | -20 °C |
| Connections, Internal thread (Rp): | EN 10226-1 |
| Connections, External thread (G): | ISO 228/1 |
| Material, Union nut: | Malleable iron casting, galv. |
| Material, Union end: | Malleable iron casting, galv. |
| Material, Standard gasket: | Unitec 300 |
Download area
Download area
| Type | Preview | Download |
| Data Sheet | KTB100 |
|
| Certificate | Building Product Declaration BPD3, KTB100 |
|
| Certificate | EAC certificate (RU), KTB100 |
|

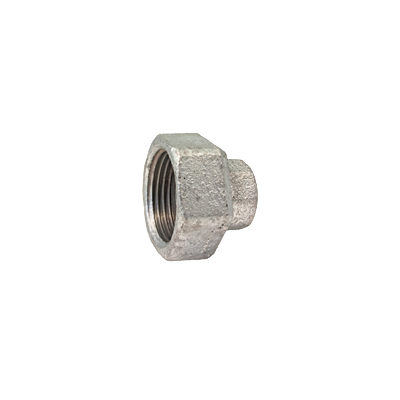

| Image | KTB112, high res |
|
