Controller
CUA100
- For use with most 3-point 24 VAC actuator.
- High level of comfort.

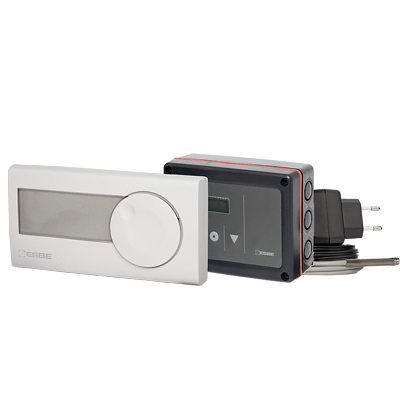

Series CUA100 is an indoor based controller to be used with most 3-point 24 VAC actuators. The controller is designed to provide a high level of comfort and at the same time provide energy savings for the house owner. The regulation is based on indoor sensor feedback and is changed by altering the target temperature in the room display unit. Serie CUA100 can also be used for constant flow temperature control.
Product range
CUA100
![CUA122_versB.png](/storage/F6C0B56EF9A0C5E5863328755913593EA1DF601EC8A89917314A7C6545C8F5FC/e3fd8d227f5e4ab3980a633a1605972c/160-160-0-png.Png/media/203633a9c56c4ce09486f8ad412c7ded/CUA122_versB.png)
![blank-01.png](/storage/C762FE90A6565E337BA056A4B6393A410C009E04531E8543F49410F6824D4A89/38ff5700606f40b5bc39ac788c9c5060/160-160-0-png.Png/media/3cc6c231992049bf8606bed5ccd9a477/blank-01.png)
![blank_2.png](/storage/0D271242DDFD729F0CB664BDC154F613F1D3E0037CE861FE06542858BD7D1BF1/007a424231cc421aa9ff4fc505e08d0f/160-160-0-png.Png/media/f0ae487e98ce4aaa8ca5354e65676b5f/blank_2.png)
![blank_3.png](/storage/7843F54E5CAC0DECC2FA667481599E9F16DC2843F75E29A3A440A584C6167DD1/a32dcbf6ddb04ccbb34ee9ffda0b07df/160-160-0-png.Png/media/ed09d26a2c82409ab3f45b3be916f002/blank_3.png)

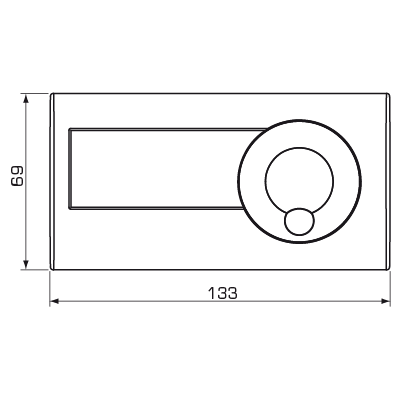

![CRB910 front_A-01.png](/storage/30A212D4BAD0BE062F66565999A4B3E74296D45566BEAA026B90C8A4B4D5605B/9b0d5ae7598a46cb99d2a4cf8923a34a/160-160-0-png.Png/media/88a91e155c794f39a988d3989fb00382/CRB910%20front_A-01.png)

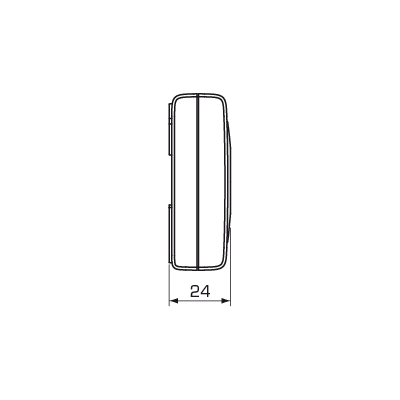

![CRB910 side_A-01.png](/storage/8A0254C6638BBDB7415DE9FE1FFFBC0D5338C16050F0A209E99397E78D289EBA/d207744813fe452f8d6cb880257e50c0/160-160-0-png.Png/media/279692490ba24f3ba118aef18f2e0b29/CRB910%20side_A-01.png)

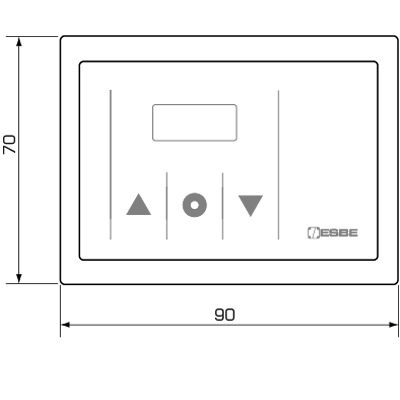

![CUA911 front_B-01.png](/storage/BD9CC108D9B66941FE50110B8DBD6633CA293E47C09485D5926994F13A2D2185/c08bee6a95204d0481e4ddd0910a64f5/160-160-0-png.Png/media/7dc87b2dcecf4227b6da04f0f4ea9525/CUA911%20front_B-01.png)
![CUA911 side_A-01.png](/storage/DC9679162E66ED573F0E67BB6606AACE111E583234E2B97CB4A14A486C417EA6/db5f65d46d7e4993ad183f5239e84520/160-160-0-png.Png/media/7ea5668850224b24a7bf387229472d20/CUA911%20side_A-01.png)
Art.no. | Reference | Voltage [V AC] | Temperature range [°C] | Room display unit | Note |
12640100 | CUA111 | 230 | 5–95 | Cable | Without internal timer |
Installation support
Installation examples
![Installation examples](/storage/058E61641365691792DD0D6342C7980B831737B67B68FDA9FA317FD3C68F7E42/cdd2399355594496a2ca2e896f4bf266/png/media/2b6acf31d73143a7970c1024c6af9e12/CUA_Room_1_GB-01.png)
![](/storage/D4C58DD3D3351BC669D48A5BEA8055967CE13995D3117C2B76556789210A270B/f52403e11fd04a6e9f297a1fb5c5b39b/png/media/b83f013c315949d795b238298ce94949/CUA_Room_2_GB-01.png)
![](/storage/11152C29D942AE5179DC9E6CA1ADE8825A5653A93CE46AAC6BE06A1220C90358/2326251cd4244ca19832ab8666bb7f66/png/media/171f970448ef4e53a3529f471384641a/CUA_Constant_GB-01.png)
Documents
Name | Download |
Installation instruction CUA100 |
|
Technical data
Technical data
Enclosure rating: | Control box: IP54; Room display unit: IP20 |
Protection class: | II |
Power supply: | Control box: 230±10% VAC, 50 Hz; Room display unit: 2x 1,5V LR6/AA |
Power consumption: | 10 VA |
Battery endurance, wireless room display unit: | 1 year |
ERP temperature controls class: | IV |
Energy efficiency contribution: | 2 % |
Radio frequency: | 868MHz, ITU region 1 approved acc. to EN 300220-2 |
Running time: | 120s (15 - 240s) |
Weight: | 0,8 kg |
Cable length: | 20 m |
Max. allowed power consumption of actuator with 230 VAC adapter: | 4 VA |
Ambient temperature, max.: | +55 °C |
Ambient temperature, min.: | -5 °C |
Temperature range - Flow pipe sensor: | +5 to +95 °C |
Temperature range - Room sensor: | +5 to +30 °C |
Conformity
![Conformity](/storage/F127235E0974424285122AD9A4A5FA7850E94E689F6422B3E7B290228F78A772/7fc5d351b98a483da0fd7c457f5abdb0/png/media/31c2bff4b4924e0aab82254bba7cf6ab/CE_A-01.png)
EMC 2014/30/EU
RoHS3 2015/863/EU
RED 2014/53/EU
![](/storage/55A21277313834FAB1E219F841D50C08BB2AF449A1727894DFEDD990DAA2FD3D/6a7be66c68044f85ad8e217f6aed15bd/png/media/0751fb01742e4d329d5b2ff81ea23601/UKCA%20black%20fill.png)
SI 2016 No. 1091
SI 2012 No. 3032
SI 2017 No. 1206
![](/storage/D112415CF1FB9E5D58E7F7F5ECD1AD2EE83CCF25FE83BABCF5A3C942DA7E9D96/ae1092b9e2ff4856860ac56de770ee98/png/media/bba1d4a50094459e99aa95f483c80917/EAC_black-01.png)
![](/storage/321497FA0E48EAA3DA58BD28AAA462CD860FCCAA1D01924844C733E462B13C63/1d12233666764a75932c6c24b532b494/png/media/d751858a06804ef8b5cf7fbee2f7ca1a/UKRSEPRO.png)
Wiring
Accessories and spare parts
Spare parts
Download area
Download area
Type | Preview | Download |
Data sheet | CUA100 |
|
Installation instruction | CUA100 |
|
Certificate | Declaration of Conformity, CUA100 |
|
Certificate | Declaration of Conformity UKCA, CUA100 |
|
Certificate | Building Product Declaration BPD3, CUA100 |
|
Certificate | EAC certificate, CUA100 |
|
Certificate | UKRSEPRO certificate (UA), CUA100 |
|
Declaration | ErP Declaration, CUA100 |
|
Image | CUA100, high res |
|
2D Image | Control box CUA911 |
|
2D Image | Room display unit CRB912, CRB913 |
|
3D drawing (stp file) | CUA100 Controller |
|
3D drawing (stp file) | CRB912, CRB913 Room unit |
|
