Actuator
ALG400
- Perfect match between the actuator and ESBE valves Series VLG100
- Different control signal available
- Easy assembly thanks to the threaded ring nut
- Stroke indicator on actuator
The ESBE Series ALG400 is a thermo-electrical actuator suitable for fan coil valves such as ESBE Series VLG100 in both heating and cooling applications. The actuator has a force of 140N and an operating stroke of 2.5 mm. The actuator –valve assembly is easily made thanks to the threaded ring nut.
The actuator is available in 24V AC/DC or 230V AC versions with 2-point or in 24V AC version with proportional control signal.
Product range
ALG43x
![ALG434.png](/storage/6C9DD23965071DEEC9E979C1E8166D10674595443727D194E177381446ED5FA7/a6bf403bd3fc4e7dbdd8c2b948d87d73/160-160-0-png.Png/media/a9faac7fb69f43c2a68495bd469798b3/ALG434.png)
![ALG438_B.png](/storage/0602909D33611347CA83E713F812012719FC1BE9852E9E3EEF9943317B7AC224/dbb6a6b599694745a2f57aa4e73c27ff/160-160-0-png.Png/media/83de9e17adf94e2a9bac7b60e8785ea4/ALG438_B.png)

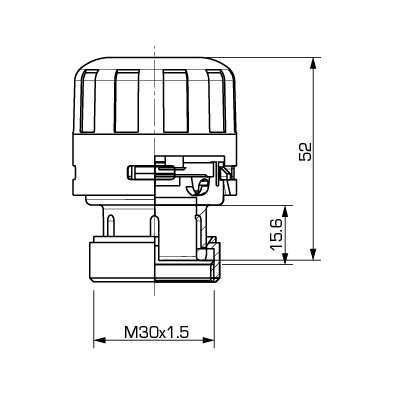

![ALG434 front_A-01.png](/storage/9527883F4B6E901EA9C6AB068CC3764DDE7BDB5DFDD5723FDB995C638CF344EF/4b98b1729e774cb19f9d54b4bf8e7451/160-160-0-png.Png/media/825fe7bd16fd4ada97ddca3cf2fbb685/ALG434%20front_A-01.png)

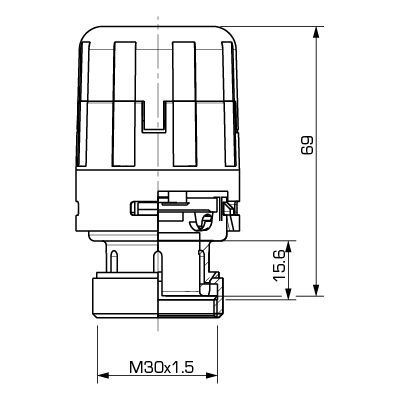

![ALG438 front_A-01.png](/storage/E48BE3DB2D91411F7EA131B153524F5A6BF94A990E768FC344219AF4B9D2EF2F/616756768f9445e5b2d41888f14242c7/160-160-0-png.Png/media/4376f8a62fb04db38f202a255b06703d/ALG438%20front_A-01.png)
![blank-01.png](/storage/C762FE90A6565E337BA056A4B6393A410C009E04531E8543F49410F6824D4A89/38ff5700606f40b5bc39ac788c9c5060/160-160-0-png.Png/media/3cc6c231992049bf8606bed5ccd9a477/blank-01.png)
![blank_2.png](/storage/0D271242DDFD729F0CB664BDC154F613F1D3E0037CE861FE06542858BD7D1BF1/007a424231cc421aa9ff4fc505e08d0f/160-160-0-png.Png/media/f0ae487e98ce4aaa8ca5354e65676b5f/blank_2.png)

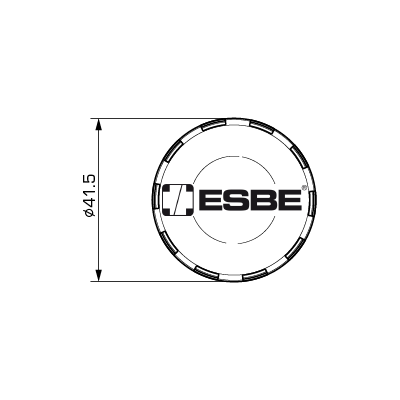

![ALG400 top_A-01.png](/storage/8A519B4495909542376E67E9C4C34B388AD72116EE653F3A3E774D7A93CD8F51/58c3a7d28e724c24879fccc56f7a5958/160-160-0-png.Png/media/045df15bffa1497a80934893cd963f5f/ALG400%20top_A-01.png)
Art.no. | Reference | Supply voltage | Control signal | Force [N] | Stroke [mm] | Running time [s] | Weight [kg] |
22500100 | ALG434 | 110-230V AC | 2-point | 140 | 2,5 | see Data sheet | 0,15 |
22500200 | ALG436 | 24V AC/DC | 2-point | 140 | 2,5 | see Data sheet | 0,15 |
22500300 | ALG438 | 24V AC | Proportional | 140 | 2,5 | see Data sheet | 0,17 |
Installation support
Assembly
![Assembly](/storage/728E4DD1D2BB92F874F5FC76C70176D09FEBA5515BF5ABBF8A6A1A2B036FB98F/204c17c7374948828cddd5f65ef995b2/png/media/df76ee99f6bd413b822d19cd55d763ef/ALG_montering-01.png)
![](/storage/B0AE55654B76EF550C60A7FE78116584736B0106E5A639876E8F0BBD2549E08F/6dc0ac0be8954d518fcb8cf31b562382/png/media/f124c35310f747e4ac22e629dd348fbe/ALG_installation-01.png)
Documents
Name | Download |
Installation instruction ALG400 |
|
Technical data
Technical data
Power supply: | ALG434: 110-230V AC, 50/60 Hz; ALG436: 24V AC, 50/60 Hz / 24V DC; ALG438: 24V AC, 50/60 Hz |
Power consumption - starting: | ALG434 (230V): 50W; ALG434 (110V): 12W; ALG436: 4W; ALG438: 5W |
Power consumption - operating: | 1,8W |
Stroke: | 2,5 mm |
Force: | 140 N |
Control signal: | ALG434/ALG436: 2-point; ALG438: 0 - 10V DC |
Enclosure rating: | IP44 (vertical mounting) |
Protection class: | II |
Weight: | ALG434/ALG436: 0,15 kg; ALG438: 0,17 kg |
Material: | Technopolymer case self-extinguishing V0 |
Ambient temperature: max.: | +50 °C |
Ambient temperature: min.: | +2 °C |
Conformity
![Conformity](/storage/F127235E0974424285122AD9A4A5FA7850E94E689F6422B3E7B290228F78A772/7fc5d351b98a483da0fd7c457f5abdb0/png/media/31c2bff4b4924e0aab82254bba7cf6ab/CE_A-01.png)
EMC 2014/30/EU
RoHS3 2015/863/EU
![](/storage/55A21277313834FAB1E219F841D50C08BB2AF449A1727894DFEDD990DAA2FD3D/6a7be66c68044f85ad8e217f6aed15bd/png/media/0751fb01742e4d329d5b2ff81ea23601/UKCA%20black%20fill.png)
SI 2016 No. 1091
SI 2012 No. 3032
![](/storage/D112415CF1FB9E5D58E7F7F5ECD1AD2EE83CCF25FE83BABCF5A3C942DA7E9D96/ae1092b9e2ff4856860ac56de770ee98/png/media/bba1d4a50094459e99aa95f483c80917/EAC_black-01.png)
![](/storage/321497FA0E48EAA3DA58BD28AAA462CD860FCCAA1D01924844C733E462B13C63/1d12233666764a75932c6c24b532b494/png/media/d751858a06804ef8b5cf7fbee2f7ca1a/UKRSEPRO.png)
Wiring
Download area
Download area
Type | Preview | Download |
Data sheet | ALG400 |
|
Installation instruction | ALG400 |
|
Certificate | Declaration of Conformity, ALG400 |
|
Certificate | Declaration of Conformity UKCA, ALG400 |
|
Certificate | EAC certificate (RU), ALG400 230V |
|
Certificate | EAC certificate (RU), ALG400 12-24V |
|
Certificate | UKRSEPRO certificate (UA), ALG400 |
|
Image | ALG434/ALG436, high res |
|
Image | ALG438, high res |
|
2D Image | ALG434/ALG436 |
|
2D Image | ALG438 |
|
