Room thermostat
TMA110
- Setting range between 5°C and 30°C
- Easy installation
- Affordable products
The ESBE series TMA 110 is a range of ON/OFF electro-mechanical room thermostats for use in heating applications. The thermostats can be connected to 2-point or spring return actuator, a circulation pump or directly to a boiler.
The series consist of 2 different versions.
Product range

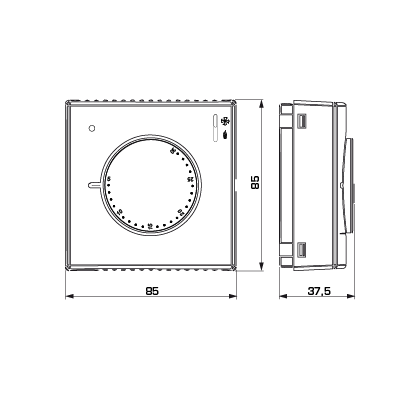

TMA11x
![TMA116_18000600.png](/storage/ED10E51C1DACF01A267E22670C9EF99E798D79BB81B3326E7DDAFAA6181FE212/9aff5121dab74e5eb24341115777ecd4/160-160-0-png.Png/media/61e6017fcd714e1baa316716fdde6903/TMA116_18000600.png)
![TMA11x_B-01.png](/storage/2F9AEDAD10E7CDB96CDE663F6312E7941E1788D5329F4AD75F8A27861B99F65B/e754e4ad6891434596187311340ad42e/160-160-0-png.Png/media/d9677e57e76f433c87cfb732380f4402/TMA11x_B-01.png)
Art.no. | Reference | Application | Voltage | Contact rating | Setting range [°C] | Weight [kg] | Note |
18000500 | TMA115 | Heating | - | 16(2,5)A @ 250V AC | 5 - 30 | 0,11 | |
18000600 | TMA116 | Heating | - | 10(1,5)A @ 250V AC | 5 - 30 | 0,12 | ON/OFF switch |
Installation support
Documents
Name | Download |
Installation instruction TMA110 2.0 |
|
Technical data
Technical data
Setting range: | 5‒30 °C |
Ambient humidity: | 20...80% RH non condensing |
Sensor type: | Gas filled bellow |
Differential/ hysteresis: | <1 °K |
ERP temperature controls class: | I |
Energy efficiency contribution: | 1 % |
Enclosure rating: | IP30 |
Contact rating: | TMA115: 16(2,5)A @ 250V AC; TMA116: 10(1,5)A @ 250V AC |
Protection class: | II |
Ambient temperature, max.: | +40 °C |
Ambient temperature, min.: | 0 °C |
Material, Housing: | ABS + PC self-extinguishing V0 |
Conformity
![Conformity](/storage/F127235E0974424285122AD9A4A5FA7850E94E689F6422B3E7B290228F78A772/7fc5d351b98a483da0fd7c457f5abdb0/png/media/31c2bff4b4924e0aab82254bba7cf6ab/CE_A-01.png)
EMC 2014/30/EU
RoHS3 2015/863/EU
![](/storage/55A21277313834FAB1E219F841D50C08BB2AF449A1727894DFEDD990DAA2FD3D/6a7be66c68044f85ad8e217f6aed15bd/png/media/0751fb01742e4d329d5b2ff81ea23601/UKCA%20black%20fill.png)
![](/storage/321497FA0E48EAA3DA58BD28AAA462CD860FCCAA1D01924844C733E462B13C63/1d12233666764a75932c6c24b532b494/png/media/d751858a06804ef8b5cf7fbee2f7ca1a/UKRSEPRO.png)
Download area
Download area
Type | Preview | Download |
Data sheet | TMA110 |
|
Installation instruction | TMA110 (de, en, es, fr, it, pt, ru) |
|
Certificate | Declaration of Conformity, TMA110 |
|
Certificate | Declaration of Conformity UKCA, TMA110 |
|
Certificate | UKRSEPRO certificate (UA), TMA110 |
|
Declaration | ErP Declaration, TMA110 |
|
Image | TMA115, high res |
|
Image | TMA116, high res |
|
2D Image | TMA115 |
|
2D Image | TMA116 |
|
