Motorized zone valve
ZRS220
- Closing pressure up to 200 kPa
- Manual operation possible
- Fast running time
- Flow direction is from A to B-port.
Series ZRS220 is a range of 2-way motorized zone valve with spring return actuator for use in heating and cooling system. The ZRS220 series is available in DN15-32, PN16 with internal thread connection. The actuator is controlled by 2-point signal with spring return function and is recommended for on/off function, available for 230V AC, 50/60Hz power supply.
The product is intended to be used in closed circuits only.
Product range
Technical data
Technical data
| Pressure class: | PN 16 |
| Working pressure: | 1,6 MPa |
| max. Differential pressure drop: | see data sheet |
| Connections: | Internal thread (G), ISO 228/1 B |
| Power supply: | 230 V AC, 50/60 Hz |
| Power consumption: | 6 VA |
| Control signal: | 2-point (2-wire spring return) |
| Enclosure rating: | IP44 |
| Protection class: | I |
| Running time: | opening: 15 seconds; closing: 5 seconds |
| Cable length: | 1 meter |
| Media, Heating water: | in accordance with VDI2035 |
| Media, Water/Glycol mixtures: | max. 50 % |
| Media, Water/Ethanol mixtures: | max. 28 % |
| Media temperature, max.: | 94 °C |
| Media temperature, min.: | +2 °C |
| Ambient temperature, max.: | +60 ºC |
| Ambient temperature, min.: | 0 ºC |
| Material, Valve body: | Brass CW 614N |
| Material, Ball: | NBR |
| Material, O-rings: | EPDM |
Conformity
SI 2016 No. 1105 (UK)
EMC 2014/30/EU
RoHS3 2015/863/EU
SI 2016 No. 1091
SI 2012 No. 3032

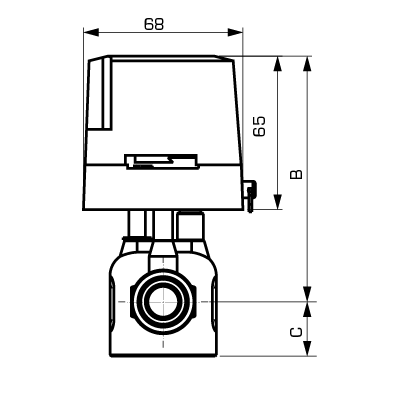

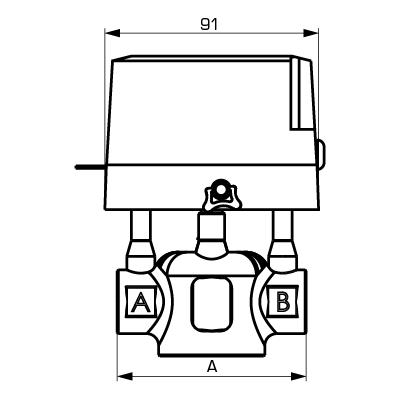

Dimensioning
Wiring
Accessories and spare parts
Spare parts
| Art No. | Reference | Designation | |
 |
47120100 | ZRS921 | ESBE ZRS921 Actuator 2-point, 230V 2-way |
Download area
Download area
| Type | Preview | Download |
| Data Sheet | ZRS220 |
|
| Installation instruction | ZRS220 |
|
| Certificate | Declaration of Conformity, ZRS220 |
|
| Certificate | Declaration of Conformity UKCA, ZRS220 |
|
| Certificate | Building Product Declaration BPD3, ZRS220 |
|
| Certificate | EAC certificate (RU), ZRS220 |
|
| Certificate | UKRSEPRO certificate (UA), ZRS220 |
|

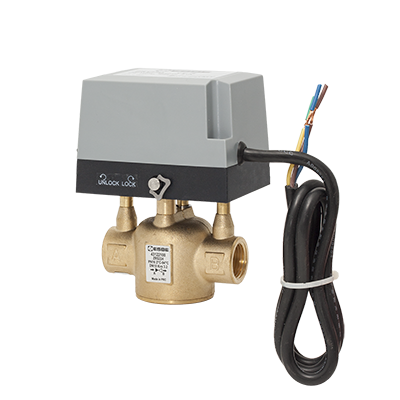

| Image | ZRS224, high res |
|
| 2D Image | ZRS224 |
|
