Actuator
ARC300
- 30 Nm strong actuator
- Perfect match between the actuator and ESBE valves 3F/4F
- Comes with adapter for clamp couplig for spindle assembly
- Different control signals available
The ESBE series ARC300 is an actuator suitable for both rotary mixing valves as well as damper applications. Thanks to the high torque ARC300 is suitable to work with the largest ESBE valve DN100-150 and with dampers sizes up to 6m2. The actuator comes with 2 sets of adapters, one set for assembly on ESBE valves 3F/4F and one set with clamp coupling for damper spindle assembly.
Product range
ARC36x

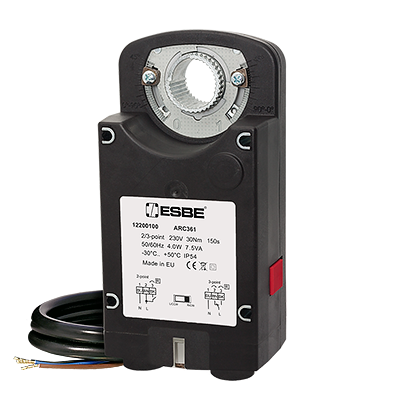

![ARC361.png](/storage/9D04B616C6C34F1DCE1A70352141732A6EC6CF1B66C8C8FB0A663272981C3991/f4f2a6ddc0aa42538fedb1aca7af2fb6/160-160-0-png.Png/media/19ac086b865a4709990b61c9ebc66575/ARC361.png)

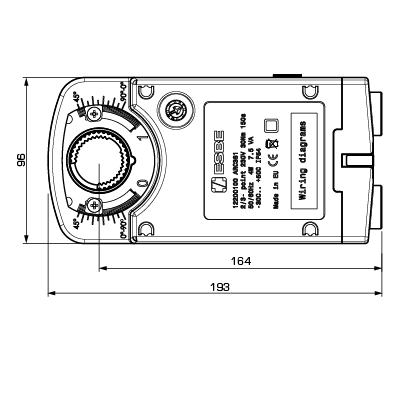

![ARC300 front_A-01.png](/storage/3D3E1985B6E8961B56CCFA673EC480CF14CC03518CCB9F0D98889182A36931B7/0fe91e3398264ae19610276cfb662e67/160-160-0-png.Png/media/bc4fe1a77d7942f78fede09fd52f30c8/ARC300%20front_A-01.png)

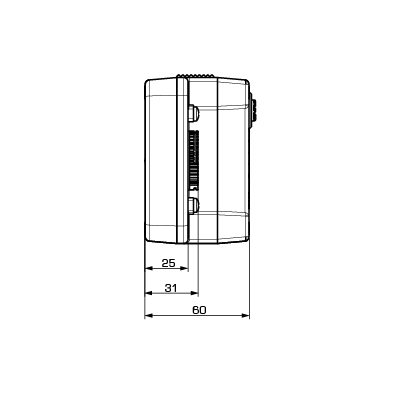

![ARC300 side_A-01.png](/storage/FE241779264F67F4E30B9D17AB5E98F201063851D014062C226DC4F9B458FF9B/8807bfd19b204eb5a619e183e400d38c/160-160-0-png.Png/media/45c2fcb36e7a42cd97d9daa79d83faff/ARC300%20side_A-01.png)

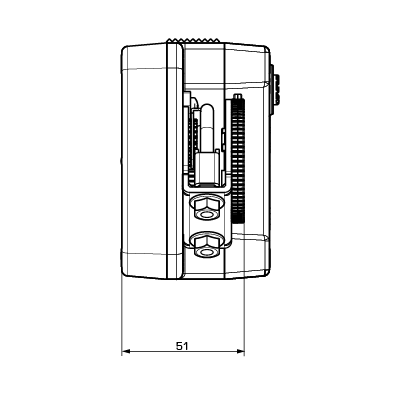

![ARC300 side_Gruners stop_A-01.png](/storage/9180A9A1007C23770BEC3D836FF625ED808B15165B672A3E671B7963302DC158/e7ff31c16d764058ba432401f3dc329b/160-160-0-png.Png/media/eefd51d60cae4b188a75744ddbc07b77/ARC300%20side_Gruners%20stop_A-01.png)
Art.no. | Reference | Voltage [V AC/DC] | Running time 90° [s] | Control signal | Torque [Nm] | Note |
12200100 | ARC361 | 230 | 150 | 2-point SPST/ 3-point SPDT | 30 | |
12201100 | ARC363 | 24 | 150 | 2-point SPST/ 3-point SPDT | 30 | |
12220100 | ARC369 | 24 | 150 | Proportional | 30 |
Installation support
![](/storage/5BFA780CC423E51A1C7CD5F622050895A4CAD150DDC3BDCE585C0D65A7997F76/a10800c433e6442d8ca80534256b14b8/png/media/6d8ad023df974f809904bdb6bac2abd0/ARC300%20front_F%20valves_A-01.png)
![](/storage/D71F5A69CDB914ECC46AD46BF57093141F80C059608437A1907044C09A75CA3E/f733c49070c040e88c620c1c9f76085e/png/media/ff7c565f45954eb09993c35a3dcf069e/ARC300%20side_F%20valves_GB_A-01.png)
Mounting positions
![Mounting positions](/storage/A6176CE759AFF888CFC9C26A3C0AD9333F0FC4442F4186CB54FFA24DA8CFC3E6/3be0d72196fe4deb882cc3b81f940683/png/media/b77bb37d6c2647279bef1f07ef07c2e0/ARC_montering-01.png)
Technical data
Technical data
Ambient humidity: | 5...95% r.H. non-condensating |
Power supply: | 24 V AC/DC; 230 V AC/DC |
Nominal voltage range: | 19...29 V AC/DC; 85...265 V AC/DC |
Power consumption: | Running - 24V: 4,5 W; Running - 230V: 4,0 W; Standby - 24/230V: 1,5 W |
Wiring sizing: | 24V: 6,0 VA; 230V: 7,5 VA |
Enclosure rating: | IP54 |
Protection class: | 24V: III; 230V: II |
Torque: | 30 Nm |
Running time: | 150s/90° |
Cable length: | 1 m |
Weight: | 1,7 kg |
Ambient temperature, max.: | +50 °C |
Ambient temperature, min.: | -30 °C |
Conformity
![Conformity](/storage/F127235E0974424285122AD9A4A5FA7850E94E689F6422B3E7B290228F78A772/7fc5d351b98a483da0fd7c457f5abdb0/png/media/31c2bff4b4924e0aab82254bba7cf6ab/CE_A-01.png)
EMC 2014/30/EU
RoHS3 2015/863/EU
![](/storage/55A21277313834FAB1E219F841D50C08BB2AF449A1727894DFEDD990DAA2FD3D/6a7be66c68044f85ad8e217f6aed15bd/png/media/0751fb01742e4d329d5b2ff81ea23601/UKCA%20black%20fill.png)
SI 2016 No. 1091
SI 2012 No. 3032
![](/storage/D112415CF1FB9E5D58E7F7F5ECD1AD2EE83CCF25FE83BABCF5A3C942DA7E9D96/ae1092b9e2ff4856860ac56de770ee98/png/media/bba1d4a50094459e99aa95f483c80917/EAC_black-01.png)
![](/storage/321497FA0E48EAA3DA58BD28AAA462CD860FCCAA1D01924844C733E462B13C63/1d12233666764a75932c6c24b532b494/png/media/d751858a06804ef8b5cf7fbee2f7ca1a/UKRSEPRO.png)
Wiring
Accessories and spare parts
Adaptor Kits
Art No. | Reference | Designation | Note | Instruction manual |
Download area
Download area
Type | Preview | Download |
Data sheet | ARC300 |
|
Installation instruction | ARC300, Electric settings |
|
Installation instruction | ARC300, Valve assembly |
|
Installation instruction | ARC300, Damper assembly |
|
Certificate | Declaration of Conformity, ARC300 |
|
Certificate | Declaration of Conformity UKCA, ARC300 |
|
Certificate | Building Product Declaration BPD3, ARC300 |
|
Certificate | EAC certificate (RU), ARC300 230V |
|
Certificate | EAC certificate (RU), ARC300 12-24V |
|
Certificate | UKRSEPRO certificate (UA), ARC300 |
|
Image | ARC300, high res |
|
2D Image | ARC300 |
|
3D drawing (stp file) | ARC36x |
|
