- Adjustable operating range (90 - 355°)
- Adjustable running time (60-390s)
- Voltage or current control signal
- Manual operation function
- Easy operation setup via DIPs

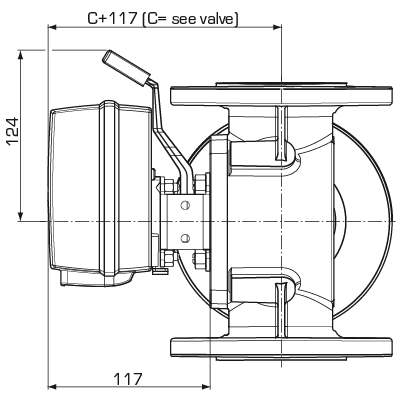

The Serie 90, 15Nm, proportional actuator is dedicated for mixing, diverting and flow control application. The actuator is designed to work with valves series F (DN15 – DN100). The series can easily be manually operated by a disconnection button and lever.
The 90P can be controlled by voltage or current control signa and offer precise operation of valve. Flexible platform allows the 90P to be operating with different running time settings (60-390s) as well as operating angles (90-355°). The 90P is a perfect combination of flexibility and strength which makes it a first choice for any application.
