Mixing valve
HG
- Superb regulation for best mixing or double mixing performance.
- Compact and easy to install.
- Long lasting and high durability.
- Bypass available.
- Perfect match between the valve and ESBE actuators.

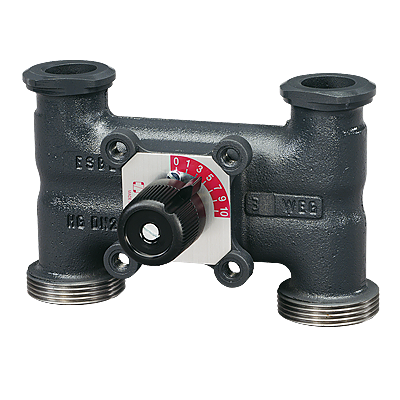

Series HG are 3-way and 4-way control valves for pump flange connections suitable for mixing and double mixing operations in parallel applications. The valves are made of high-performing cast iron allowing use in heating installations. The HG series is available in DN25 and comes with pump flange connection . The valve is perfectly combined with ESBE actuators and controllers.
Product range
Technical data
Technical data
| Pressure class: | PN10 |
| Torque, max.: | 5 Nm |
| Leakrate in % of flow: | max. 1,0 |
| max. Differential pressure drop: | 50 kPa |
| Connections: | External thread (G), ISO 228/1 |
| Media, Heating water: | in accordance with VDI2035 |
| Media, Water/Glycol mixtures: | max. 50 % |
| Media, Water/Ethanol mixtures: | max. 28 % |
| Media temperature, max.: | +110 °C |
| Media temperature, min.: | -10 °C |
| Material, Valve body: | Cast iron, EN-JL 1030 |
| Material, Slide/Spindle: | Brass, CW 614N |
| Material, Bushing: | Plastic |
| Material, Cover plate: | Zinc |
| Material, O-rings: | EPDM |
Conformity
SI 2016 No. 1105 (UK)

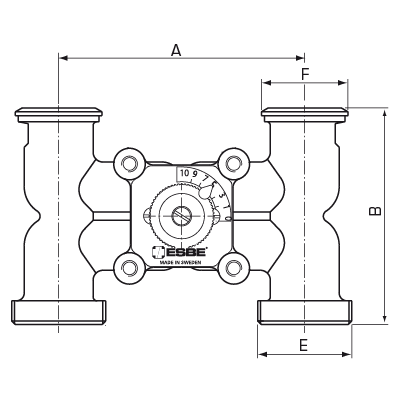

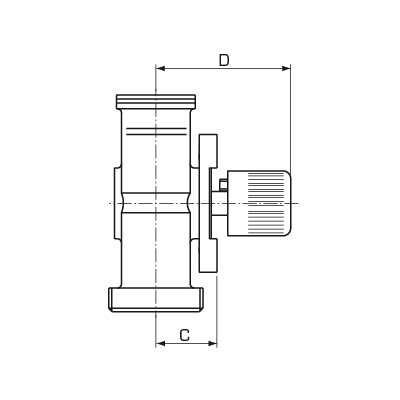

Dimensioning
Accessories and spare parts
Spare parts
| Art No. | Reference | Designation | Note | Instruction manual | |
 |
17000600 | ESBE Jointing set MG |  |
||
 |
17004300 | ESBE Interior complete 3HG | 3HG DN25 | |
|
 |
17003700 | TM/HG-1 | ESBE TM/HG-1 Interior complete | 4HG DN25 (Kvs 6,3-8) (TM22) | |
|
17004200 | TM-2/HG-2 | ESBE TM-2 / HG-2 Interior complete | 4HG DN25 (Kvs 10), TM DN20 | |
 |
17007500 | ESBE Handle knob DN15-50 | |
Adaptor Kits
| Art No. | Reference | Designation | Note | Instruction manual | |
 |
16051300 | 900 | ESBE 900 Adaptor kit ESBE valves series MG, G, F, BIV, T, TM, H, HG. | Series 90, CRA120, CRC120. Comes with the actuator or Controller. | |
Download area
Download area
| Type | Preview | Download |
| Data Sheet | HG |
|
| Certificate | Declaration of Conformity, HG |
|
| Certificate | Declaration of Conformity UKCA, HG |
|
| Certificate | Building Product Declaration BPD3, HG |
|
| Certificate | EAC certificate (RU), HG |
|
| Certificate | UKRSEPRO certificate (UA), HG |
|
| Image | 3HG, high res |
|
| Image | 4HG c-c 125mm, high res |
|
| Image | 4HG c-c 90mm, high res |
|
| 2D image | HG |
|
