Thermostatic mixing valve
VTA310
- Domestic hot water regulation.
- Asymmetrical flow pattern.
The series VTA310 is designed for temperature control in domestic hot water installations without any requirements for a scald safe function. This series of valves is not suitable for domestic hot water installations equipped with HWC.
Product range
VTA312, External thread
![Prod_VTA312_verA_issueA_lr.png](/storage/452616CE87F17592AAC69AFBFA12E890ABDC6983C8A63606419CE490E8D05004/0f6f9b773cda42708b5fc4219311e2e9/160-160-0-png.Png/media/a770fffce9174a369bc92286247578ce/Prod_VTA312_verA_issueA_lr.png)

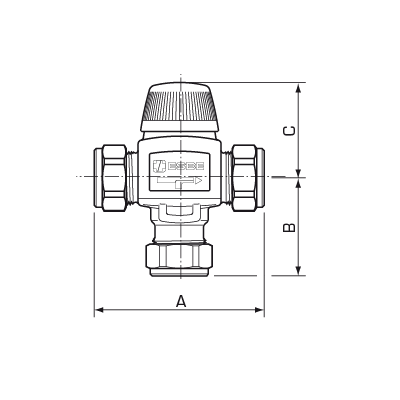

![VTA310 front_A-01.png](/storage/4D2CC6C549995A5A8B0C7298EC1F080CD4117B89FC53624375846E6E208D2D79/a4b28f0afe904fbbb70b17e4042d5dc0/160-160-0-png.Png/media/8793478cd3db436dac6c8bcbb72a3d26/VTA310%20front_A-01.png)

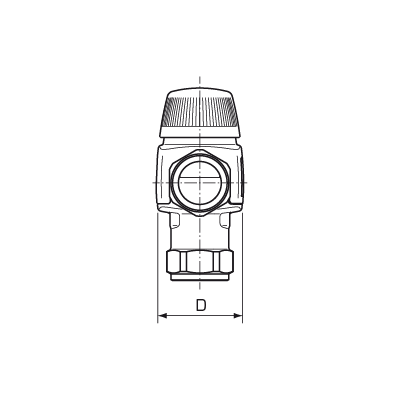

![VTA310 side_A-01.png](/storage/28793D0DBDCEDD2019DC14BE9378CFE129830B598719363BCF825D2C2064DFDA/f4bc180912714598ae8ba48ad8b93c89/160-160-0-png.Png/media/7ccf6a7c680d4748b1424621138d7f3c/VTA310%20side_A-01.png)
Art.no. | Reference | Temp. range [⁰C] | Kvs | Connection | A [mm] | B [mm] | C [mm] | D [mm] | Weight [kg] | Note |
31050200 | VTA312 | 35 - 60 | 1,2 | G ½" | 70 | 42 | 52 | 46 | 0,41 | Replaces 410. |
VTA313, Compression fitting
![Prod_VTA313_verA_issueA_lr.png](/storage/01EE6D4AD999CEB585FD324321ECD79530D568C86A863D1DF6DB751108343EB1/eaf3eb21159847df934bf51bd418e655/160-160-0-png.Png/media/8107f00e5a9149e193c5886caece9538/Prod_VTA313_verA_issueA_lr.png)
![VTA310 front_A-01.png](/storage/4D2CC6C549995A5A8B0C7298EC1F080CD4117B89FC53624375846E6E208D2D79/a4b28f0afe904fbbb70b17e4042d5dc0/160-160-0-png.Png/media/8793478cd3db436dac6c8bcbb72a3d26/VTA310%20front_A-01.png)
![VTA310 side_A-01.png](/storage/28793D0DBDCEDD2019DC14BE9378CFE129830B598719363BCF825D2C2064DFDA/f4bc180912714598ae8ba48ad8b93c89/160-160-0-png.Png/media/7ccf6a7c680d4748b1424621138d7f3c/VTA310%20side_A-01.png)
Art.no. | Reference | Temp. range [⁰C] | Kvs | Connection | A [mm] | B [mm] | C [mm] | D [mm] | Weight [kg] | Note |
31050100 | VTA313 | 35 - 60 | 1,2 | CPF 15 mm | 86 | 50 | 52 | 46 | 0,49 | A non-return valve for the cold water is included. Replaces 401. |
31050400 | VTA313 | 35 - 60 | 1,5 | CPF 22 mm | 86 | 50 | 52 | 46 | 0,57 | A non-return valve for the cold water is included. Replaces 404. |
31050500 | VTA313 | 30 - 70 | 1,5 | CPF 22 mm | 86 | 50 | 52 | 46 | 0,62 | A non-return valve for the cold water is included. |
Installation support
Operation
![Operation](/storage/7C2340DEFF3F6A7E70FD626CEEDDDF678F7E4535DA6B023C8D1F66F58EB1EC76/51f50b8beac94285b03c9802d22925b0/png/media/726b68ecf13d483ca7eceb943345364a/VTA320_GB_A-01.png)
Installation example
![Installation example](/storage/4BD057703D65BC9367C76D2ED962400C46A7724AF08A5B1AB97BA785DC7B9840/fd278e9ca2654cbcb3fcf2de737ac7b6/png/media/8477679ec6584ceeb8f94bf77de94c80/VTA310-01.png)
Documents
Name | Download |
Installation instruction VTA310 |
|
Technical data
Technical data
Pressure class: | PN 10 |
max. Differential pressure, Mixing: | 0,3 MPa |
Media temperature, max.: | +95 °C |
Temperature stability: | ± 2 °C |
Connections, External thread (G): | ISO 228/1 |
Connections, Compression fitting (CPF): | EN 1254-2 |
Material, Valve housing and other metal parts with fluid contact: | Dezincification resistant brass, DZR |
Conformity
SI 2016 No. 1105 (UK)
4MS/KTW-BWGL
![](/storage/9CF6D7AADA0FB795039A11566B757EE82FD4CB94EA10E7C6432416313018511C/5754a223c81b462591e28bc831801505/png/media/2889d78c319c40439f2b95c7c31eda24/UA_Installation%20symbol_black.png)
ÜA R-15.2.4-22-17605 (AT)
![](/storage/D112415CF1FB9E5D58E7F7F5ECD1AD2EE83CCF25FE83BABCF5A3C942DA7E9D96/ae1092b9e2ff4856860ac56de770ee98/png/media/bba1d4a50094459e99aa95f483c80917/EAC_black-01.png)
![](/storage/321497FA0E48EAA3DA58BD28AAA462CD860FCCAA1D01924844C733E462B13C63/1d12233666764a75932c6c24b532b494/png/media/d751858a06804ef8b5cf7fbee2f7ca1a/UKRSEPRO.png)
![](/storage/86B29CAFD1FCBEAE1F4CFA3CBF4DC5DBCB829BCC6486F992C01F9672681B61B8/6d25dcbe4c8340b88f01efbe2702498d/png/media/f14801934e5f471fb471cfbdf08c55ea/PZH_A-01.png)
Dimensioning
Accessories and spare parts
Download area
Download area
Type | Preview | Download |
Data Sheet | VTA310 |
|
Installation instruction | VTA310 |
|
Certificate | Declaration of Conformity, VTA310 |
|
Certificate | Declaration of Conformity UKCA, VTA310 |
|
Certificate | Building Product Declaration BPD3, VTA310 |
|
Certificate | ÜA R-15.2.4-22-17605 (AT), VTA310 |
|
Certificate | KIWA-21-DW-10120, VTA310 |
|
Certificate | EAC certificate (RU), VTA310 |
|
Certificate | UKRSEPRO certificate (UA), VTA310 |
|
Certificate | PZH-certificate (PL), VTA310 |
|
Image | VTA312, high res |
|
Image | VTA313, high res |
|
2D Image | VTA310 |
|
