Thermostatic mixing valve
VTS550
- High temperature resilience.
- Anti-scald and anti-legionella protection.
- Accuracy of regulation.
- Suitable for HWC (hot water circulation).
The series VTS550 for domestic hot water distribution connected to solar heating systems, where the high water temperatures require extra durable components. VTS550 has symmetrical flow pattern. These series of valves are also suitable for domestic hot water installations equipped with HWC (hot water circulation).
Product range
VTS552, External thread
![Prod_VTA552_VTS552_verA_issueA_lr.png](/storage/9F5EC762E7A2F8F25C0D80C4D8385EEF4C9A2D90D0E1E49CD18D483925C6BD2B/344e3a244c7b466b9803a374392c7080/160-160-0-png.Png/media/a27408c71bad43109d1c8c84d5b5187c/Prod_VTA552_VTS552_verA_issueA_lr.png)
![VTA550 front_A-01.png](/storage/0F930114923F0D615400FCCAC33CE467E705BC5208E697744D05FF0995E70341/ecb0ca43c20d4863ad82c0e4dafd75b0/160-160-0-png.Png/media/9d5afb79fff94c93bdc04574aea27cc1/VTA550%20front_A-01.png)
![VTA550 side_A-01.png](/storage/9FBA557E3EC6FBC30412F4472382839BF095557B5AEB4352CA9EEA1BDC0B4C7C/704494a11b0043cba5892610d545eefa/160-160-0-png.Png/media/66d65460b91542ea99a6d6bb75229fa2/VTA550%20side_A-01.png)
Art.no. | Reference | Temp. range [⁰C] | Kvs | Connection E | A [mm] | B [mm] | C [mm] | D [mm] | Weight [kg] |
31740100 | VTS552 | 45 - 65 | 3,2 | G 1" | 84 | 50 | 60 | 56 | 0,78 |
31740300 | VTS552 | 45 - 65 | 3,5 | G 1¼" | 84 | 50 | 60 | 56 | 0,87 |
31740200 | VTS552 | 50 - 75 | 3,2 | G 1" | 84 | 50 | 60 | 56 | 0,78 |
31740400 | VTS552 | 50 - 75 | 3,5 | G 1¼" | 84 | 50 | 60 | 56 | 0,87 |
VTS552, with adapters
![Prod_VTA_VTS552_koppel_verA_issueA_lr.png](/storage/A05C827860F0B9B7BA022DF0E63C3DDB3F6B9487E0A4EED5737FCA84D4053323/de01d8f657f3496fa1d6286a2ebf93e0/160-160-0-png.Png/media/96ac97be45dd4ccdac368b9fc8526752/Prod_VTA_VTS552_koppel_verA_issueA_lr.png)
![VTA550 koppel front_A-01.png](/storage/2A1B5C1819DAB2AC61B1E6727071FE4F88581766362AB76B0FBFC181C330083E/947a0aa3877f4b82a136afda76ee1ad6/160-160-0-png.Png/media/8894bf81ce9b467699857a7e057f1dfa/VTA550%20koppel%20front_A-01.png)
![VTA550 koppel side_A-01.png](/storage/B11DA1673382B59EFABC6A654439971A025C83F1295B8D62EA185B929B0F7738/d92aa0add1404a3ca4ff22def47615e9/160-160-0-png.Png/media/111e1b58c9ab4856a1e5e45f99f8a779/VTA550%20koppel%20side_A-01.png)

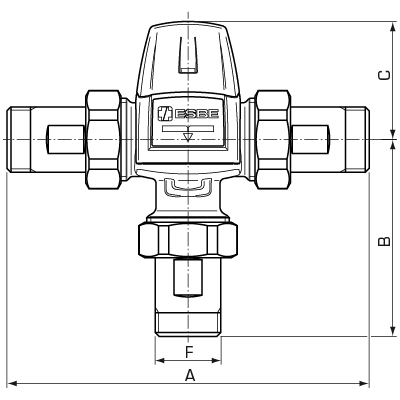

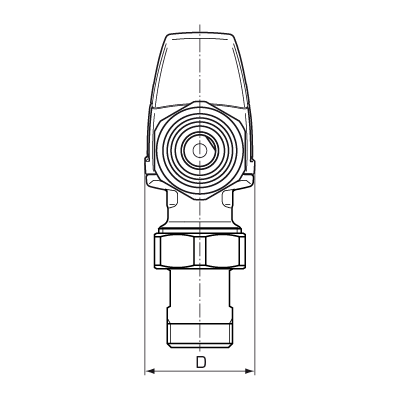

Art.no. | Reference | Temp. range [⁰C] | Kvs | Connection F | A [mm] | B [mm] | C [mm] | D [mm] | Weight [kg] |
31740500 | VTS552 | 45 - 65 | 3,0 | R ¾" | 154 | 85 | 60 | 56 | 1,14 |
31740700 | VTS552 | 45 - 65 | 3,4 | R 1" | 164 | 90 | 60 | 56 | 1,51 |
31740600 | VTS552 | 50 - 75 | 3,0 | R ¾" | 154 | 85 | 60 | 56 | 1,14 |
Installation support
Operation
![Operation](/storage/FA65FD434365142F8E17AF1FA5325953DC703D32F13CE788A06C48BB6F82CDD3/728f38c692814d73876e85c20ed44744/png/media/94fea0edd2d3486fb7b9319e0ca4fe38/VTA550%20VTS550_GB_A-01.png)
Installation example
![Installation example](/storage/6313355E49FCFE28FF5E45F1933CACF841BE271CF7A59FFE91A25D1F78E297F7/f05b39462b054ad79089b6055b3972a9/png/media/8f448d6d348f4a479c9b88e8830db524/VTA550_VTS550-01.png)
Documents
Name | Download |
Installation instruction VTS550 |
|
Technical data
Technical data
Pressure class: | PN 10 |
Working pressure: | 1,0 MPa |
max. Differential pressure, Mixing: | 0,3 MPa |
Temperature stability: | ±4 °C * Valid at unchanged hot/cold water pressure, minimum flow rate 9 l/min. Minimum temperature difference between hot water inlet and mixed water outlet 10°C. |
Media temperature, continuosly max.: | +110 °C |
Media temperature, temporarily max.: | +120 °C |
Connections, External thread (G): | ISO 228/1 |
Connections, External thread (R): | EN 10226-1 |
Material, Valve housing and other metal parts with fluid contact: | Dezincification resistant brass, DZR |
Conformity
SI 2016 No. 1105 (UK)
4MS/KTW-BWGL
![](/storage/9CF6D7AADA0FB795039A11566B757EE82FD4CB94EA10E7C6432416313018511C/5754a223c81b462591e28bc831801505/png/media/2889d78c319c40439f2b95c7c31eda24/UA_Installation%20symbol_black.png)
ÜA R-15.2.4-22-17605 (AT)
![](/storage/D112415CF1FB9E5D58E7F7F5ECD1AD2EE83CCF25FE83BABCF5A3C942DA7E9D96/ae1092b9e2ff4856860ac56de770ee98/png/media/bba1d4a50094459e99aa95f483c80917/EAC_black-01.png)
![](/storage/321497FA0E48EAA3DA58BD28AAA462CD860FCCAA1D01924844C733E462B13C63/1d12233666764a75932c6c24b532b494/png/media/d751858a06804ef8b5cf7fbee2f7ca1a/UKRSEPRO.png)
![](/storage/86B29CAFD1FCBEAE1F4CFA3CBF4DC5DBCB829BCC6486F992C01F9672681B61B8/6d25dcbe4c8340b88f01efbe2702498d/png/media/f14801934e5f471fb471cfbdf08c55ea/PZH_A-01.png)
Dimensioning
Accessories and spare parts
Connection kit KTD200, KTD300
Connection kit KCD300
Download area
Download area
Type | Preview | Download |
Data Sheet | VTS520, VTS550 |
|
Installation instruction | VTS550 |
|
Certificate | Declaration of Conformity, VTS550 |
|
Certificate | Declaration of Conformity UKCA, VTS550 |
|
Certificate | Building Product Declaration BPD3, VTS550 |
|
Certificate | KIWA-21-DW-10122, VTS550 |
|
Certificate | EAC certificate (RU), VTS550 |
|
Certificate | UKRSEPRO certificate (UA), VTS550 |
|
Approval | PZH-certificate (PL), VTS550 |
|
Image | VTS552, high res |
|
Image | VTS552 with adapters, high res |
|
2D Image | VTS550 |
|
2D Image | VTS550 with adapters |
|
